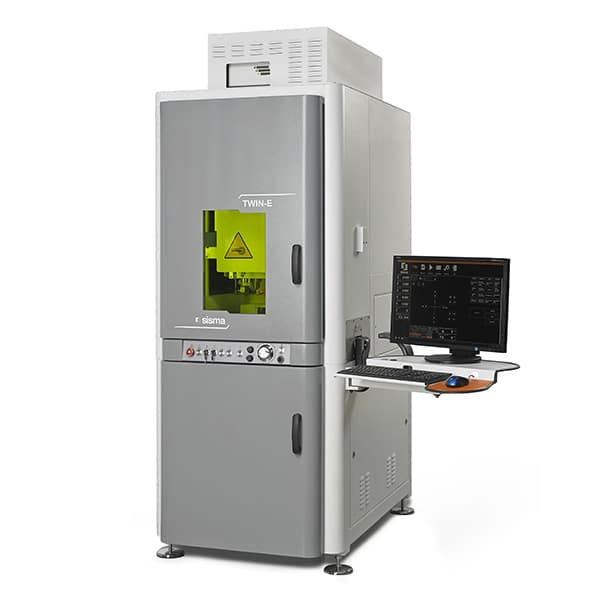

TWIN-E, system for combined laser and CNC machining.
TWIN-E offers the most successful combination of precision mechanics and SISMA laser technology.
This multi-function machine has been designed to perform almost unlimited combined machining operations (engraving and cutting), diamond cutting and laser processing (marking and cutting).
Thanks to the controlled axes accuracy, the machine transfers on the metal the exact sequence of effects designed with the graphic software for large scale production of unique items in automatic cycle (set & forget).
|Working area axis X||300 mm|
|Working area axis Y||350 mm|
|Working area axis Z||200 mm|
|Axes speed||30.000 mm/min|
|Axes precision||+/- 0,01 mm|
|Axes resolution||2 micron|
|Pressurized electrospindle||45.000 rpm - 45.000 giri/min|
|Main supply||230V 50/60 Hz 1Ph|
|Dimensions (W x D x H) console included||1800*x1500x2310 mm|
