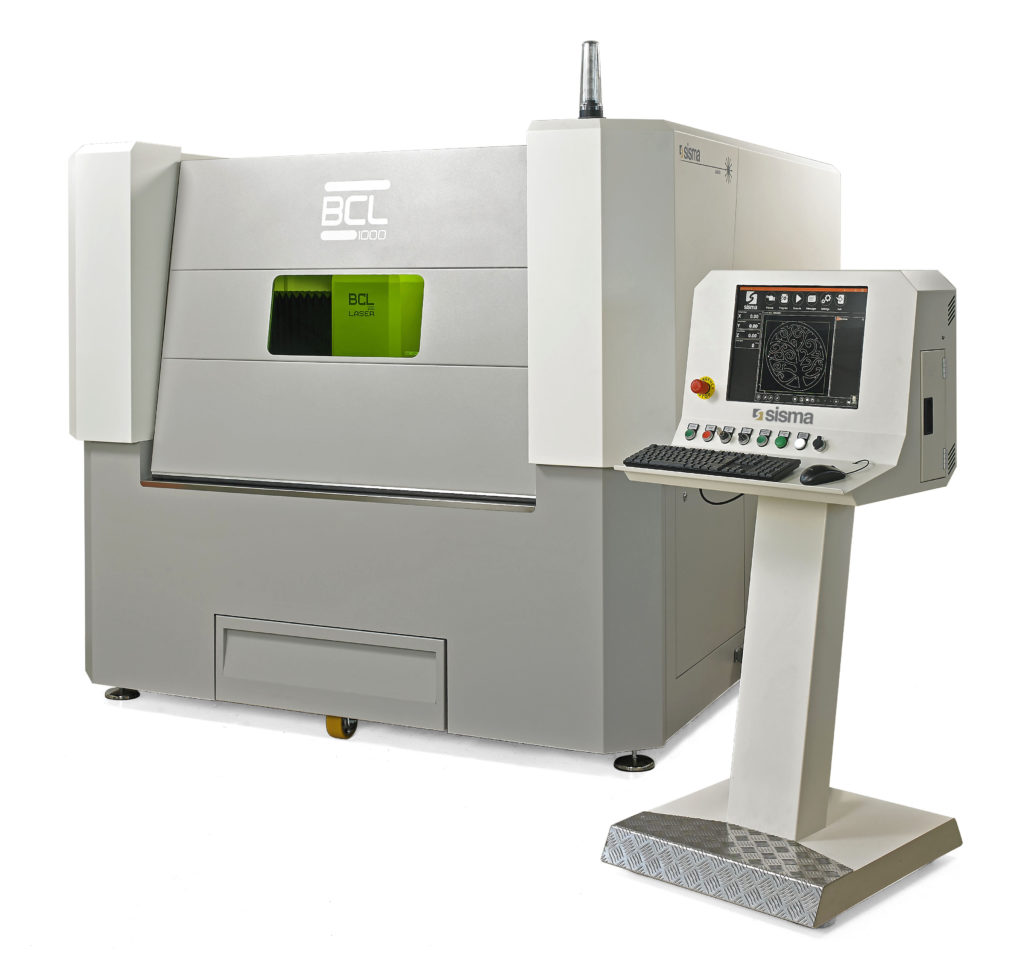

BCL, laser cutting system in the X/Y linear axis version.
BCL is able to offer high performance and functionality with a stable output over time: the structure is made of electro-welded tubular steel with thermal stress relieving.
The cutting head incorporates a capacitive anti-collision sensor that ensures high-precision machining at all times: BCL offers superior performance in terms of speed and cutting quality, ensuring perfect cutting results even with continuous changes in direction and acceleration variations.
Available as an option: systems for separating the work area by means of a mobile column equipped with pneumatic vices for sheet metal fastening and perimeter vices on three sides for sheet holding and/or tensioning.
|Output power||300/3000 W||500 W||1000 W|
|Wavelength||1070 nm||500 W||1000 W|
|Power supply||380V 50/60Hz 3ph||Esterno||Esterno|
|Overall power consumption||8 KW||9,5 KW||10,5 KW|
|Maximum sheet size||1250 x 1000 mm||9,5 KW||10,5 KW|
|Working area without clamps X, Y||1250 x 1000 mm|
|Working area with optional clamps X, Y||1200 x 975 mm|
|Axis precision||0,015 +/- mm|
|Axis resolution||0,010 +/- mm|
|Max axis speed||60 m/min|
|Machine dimensions w x l x h||2300 x 2500 x 2000 mm Without console|
|Pulpit dimensions w x l x h||750x750x1500 mm|
|Cooling system dimensions w x l x h||600x600x1050 mm|
|Total weight||2000 kg|
|Cooling system weight||80 kg|
