SARTY

sisma / Laser systems

SARTY, desktop laser marking and engraving system.

Versatile
SARTY is a small-sized desktop laser marking and engraving system with a solid and durable structure. It can be quickly adapted to process different objects by simply replacing the template.

Highly productive
The loading/unloading option during the processing, with the consequent elimination of downtimes, make SARTY ideal for marking numerous pieces of a single batch.

Functional
SARTY is compatible with the coaxial vision system (CVS) for automatic piece recognition and is equipped with a powerful, flexible software that can be connected to the company database.

Contact us for more information.

TECHNICAL DETAILS

Model100200F200F EP300F400F500F
Laser source Nd:YAGYbYbYbYbYb
Wavelength 1064 nm1064 nm1064 nm1064 nm1064 nm1064 nm
Average laser power 10 W20 W20 W30 W40 W50 W
Pulse frequency 1÷500 kHz1÷500 kHz1÷1000 kHz1÷500 kHz1÷1000 kHz1÷500 kHz
Pulse duration 260/40 ns260/40 ns3-500 ns260/40 ns10-240 ns250/40 ns
Max pulse energy 1/0,21 mJ1/0,21 mJ0,03/1 mJ1/0,21 mJ0,16/1,33 mJ1/0,21 mJ
Beam quality ≤ 1,6 M2≤ 1,6 M2≤ 1,6 M2≤ 1,6 M2≤ 1,6 M2≤ 1,6 M2
Laser spot diameter 20 μm20 μm20 μm20 μm40 μm20 μm
Max marking speed 2000 mm/s
Focal lenses F100, F160 (standard), F254, F330
4th axesOptional
Laser guide Class 2M Red Laser Diode; λ=650 nm; 2 mW
Working temperature10°C to 35°C - non condensing
Cooling system Forced-air cooling
Table diameter Ø 580 mm
Power supply 230 V ± 15% 50/60 Hz 1ph 0,8 kW
Dimensions (WxDxH) 796 x 1148 x 954 mm
Weight150 kg

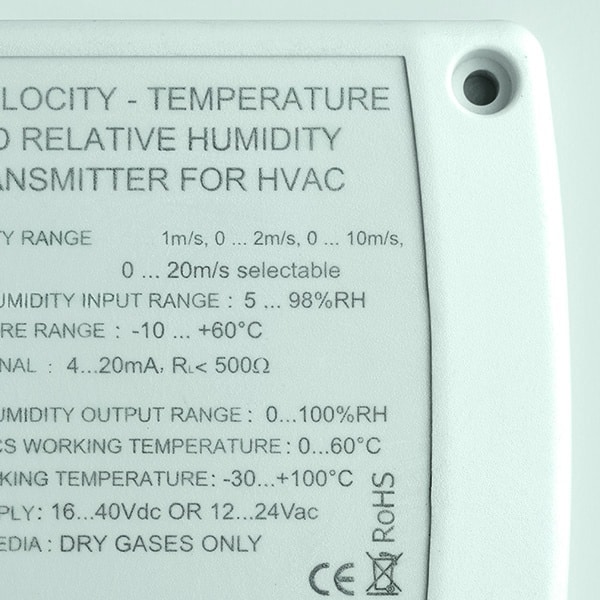

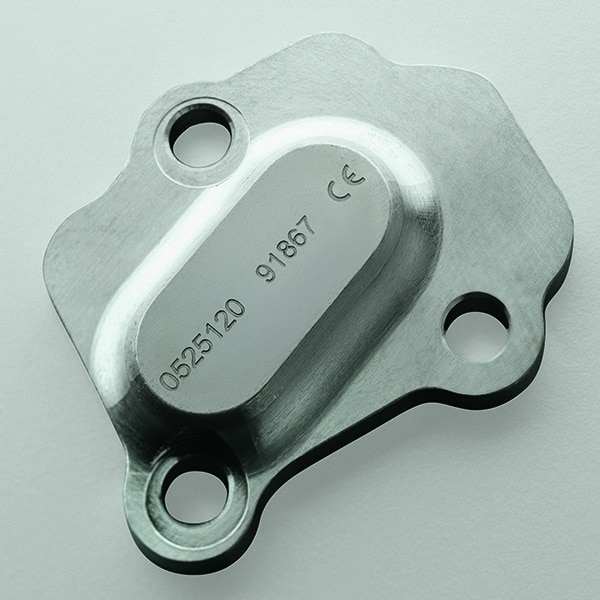

Applications SARTY
