BIG SMARK

LASER MARKING AND ENGRAVING SYSTEM

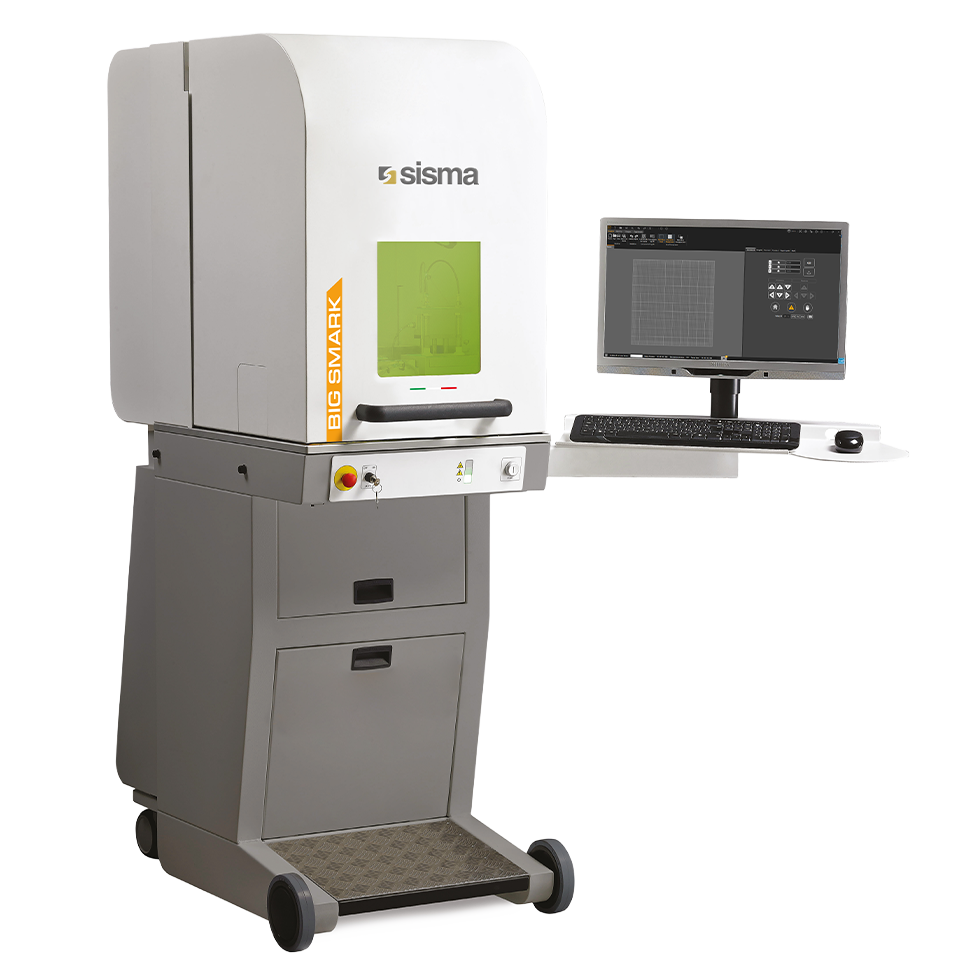

BIG SMARK is a marking and engraving system with an ytterbium fibre laser source. The laser source is installed in the base that supports the large working chamber (500 x 500 x 380 mm), which is accessible through a large manual door that opens on three sides.
The enhanced features of the source allow for engraving, marking and micro-cutting in line with the highest technological standards.

This machine is suitable for:

VERSATILITY

For different types of parts, processes, or workable materials.

CVS COAXIAL VISION SYSTEM

Perfect and repeatable centering.

SOFTWARE SLC 3

Entirely developed by SISMA, is intuitive and reliable.

Machine detail

ciao

Working chamber

Click here

VERSATILE AND SPACIOUS

BIG SMARK features a large working chamber (500 x 500 mm) and a considerable range of available machining operations on precious metals, steel, brass, aluminium and polymers, ranging from photo-etching to plate cutting, from precise and detailed engraving to the deepest and fastest excavations, making it an extremely versatile machine. It is also possible to have automatic part recognition (Pattern Matching) in combination with the Coaxial Vision System (CVS). Maximum marking area 180 x 180 mm (F254).

BIG SMARK

INSIGHTS

Slab cutting

The configuration featuring the most powerful laser on marking machines such as the EASY, BIG SMARKY and BIG SMARK, is suitable for cutting slabs. A dedicated device is available for the motorised plate pulling, complete with a fume extractor.

Moulds and punches

Thanks to the possibility of installing lasers with powers of up to 100W, it is possible to obtain engravings with significant depths.

Select the application sector:

Technical Data	BIG SMARK 200F EP	BIG SMARK 500F EP	BIG SMARK 700F EP	BIG SMARK 3000F	BIG SMARK 7000F	BIG SMARK 1000F EP
Active material	Yb	Yb	Yb	Yb	Yb	Yb
Wavelength	1059 – 1064 nm	1059 – 1064 nm	1059 – 1064 nm	1080 – 1095 nm	1080 – 1095 nm	1059 – 1064 nm
Average power	20 W	50 W	70 W	30 W	55 W	100 W
Working frequency	1 ÷ 1000 Khz	1 ÷ 1000 Khz	1 ÷ 1000 Khz	30 ÷ 80 Khz	70 ÷ 140 Khz	1 ÷ 4166 Khz
Impulse duration	6 – 500 ns	6 – 500 ns	9 – 500 ns	50 – 200 ns	50 – 200 ns	6 – 2020 ns
Peak power	> 10 kW	> 10 kW	> 10 kW	8,5 kW	> 10 kW	14 kW
Pulse energy	0,03 – 1 mJ	0,03 – 1 mJ	0,03 – 1 mJ	1 mJ	0,8 mJ	0,03 – 1,3 mJ
Beam quality	< 1,6	< 1,6	< 1,6	< 1,6	< 1,6	< 1,6
Cooling system	Air	Air	Air	Air	Air	Air
Z axes stroke	380 mm	380 mm	380 mm	380 mm	380 mm	380 mm
Z axes precision	0,05 mm	0,05 mm	0,05 mm	0,05 mm	0,05 mm	0,05 mm
Repeatability	0,02 mm	0,02 mm	0,02 mm	0,02 mm	0,02 mm	0,02 mm
Max piece weight	50 kg	50 kg	50 kg	50 kg	50 kg	50 kg
Power supply	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket
Power absorption	0,8 kW	0,8 kW	0,8 kW	0,8 kW	0,8 kW	0,8 kW
Dimensions (L x D x H)	655 mm (1357 mm with console)x 1171 mm x 1762 mm (2137 open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 open door)	655 mm (1357 mm with console) x 1171 mm x 1762 mm (2137 open door)
Weight	240 kg	240 kg	240 kg	240 kg	240 kg	240 kg

CVS Coaxial Vision System
Machine stand.
Automatic door.
Pattern Matching (PM)is a software modul that automatically recognizes one or more shapes, even simultaneously, and allows for consequent alignment and execution of the laser process (marking, engraving, cut, etc.).
Software FILL-IT for the generation of filling graphics for aesthetic effects. Fill-It is able to reproduce effects such as perlage, sunburst, côte de genève, brushed, sandblasted and with the possibility of personalized effects.
Motorised spindles with numerous options of grippers.
Static vices for plates or with motorised plate pulling motorised, also with Vacuum Box for fume extraction.
Foot control.
