SWA F

LASER WELDING SYSTEM FOR LARGE MOULD REPAIRS

SWA F is a semi-automatic laser welding system on wheels, specially designed for carrying out maintenance or repair work on large moulds.
The special design of SWA F allows the welding head to be positioned in hard-to-reach areas, especially when the workpiece cannot be moved due to its weight and size.
SWA F is equipped with a 450W fibre laser source, which provides exceptional productivity, flexibility and efficiency.

This machine is suitable for:

MINIMAL MAINTENANCE

Very low maintenance costs.

FOR BIG SIZE PIECES

For large, heavy, or difficult-to-transport pieces.

FOR COMPLEX WELDS

For welding in difficult spots.

Tilting welding head

ciao

Tilting X-axis

Click here

HIGH-PERFORMANCE, NO MAINTENANCE

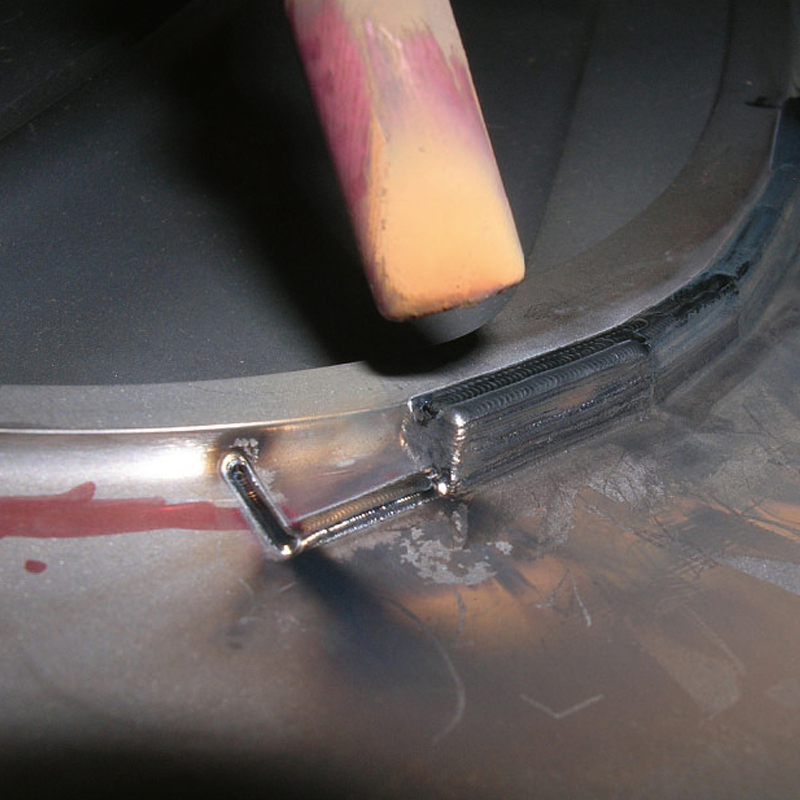

The fully articulated head of the SWA F allows welding even in particularly difficult areas, such as narrow, deep grooves, internal corners and external edges.

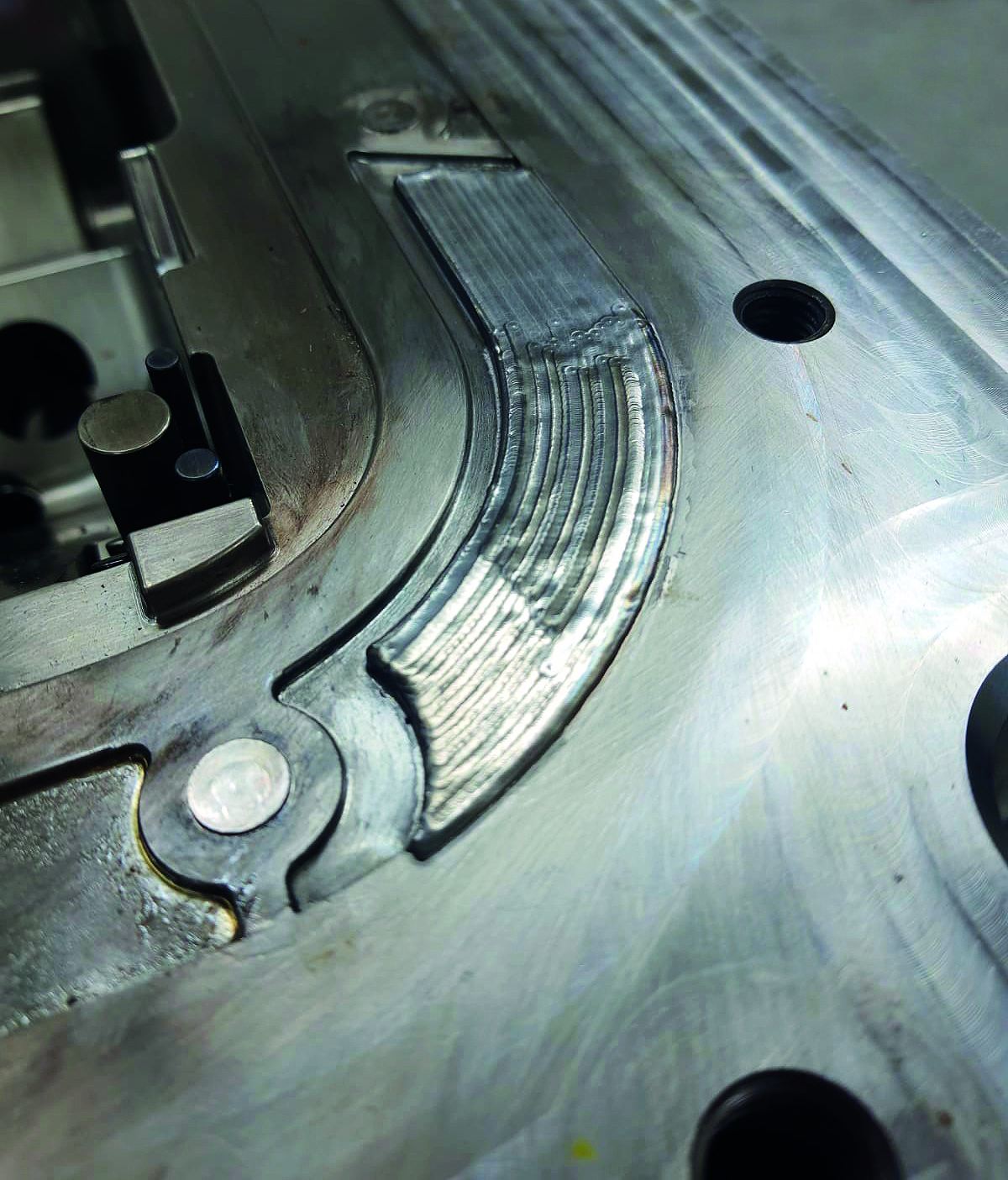

Excellent results are obtained on steels, copper and aluminium alloys, as well as on copper and cast iron. Depending on the type of filler wire used, it is possible to achieve high-hardness overlays, eliminating the need for subsequent heat treatments on molds.

SWA F offers total laser control for uniform and precise weld seams even at low power levels.

It has a multifunction console for setting parameters and manually moving the axes.

Techinical Data – Dati Tecnici	450F
Source type – Sorgente laser	Fibra
Wavelenght – Lunghezza d’onda	1070 nm
Average laser power – Potenza media laser	450 W
Peack power – Potenza di picco	4,5 kW
Max pulse energy – Max energia impulso	45 J
Pulse duration – Durata impulso	0,6 – 50 ms / CW
Laser spot diameter – Diametro spot laser	0,1 – 2 mm
Power supply- Alimentazione	230 V 50/60 Hz 1ph
X axis stroke – Corsa asse X	300 mm
Y axis stroke – Corsa asse Y	150 mm
Z axis stroke – Corsa asse Z	500 mm
Moving speed – Velocità di movimento	0,1 -30 mm/s
Vision system – Sistema di visione	Binoculare Leica
Cooling – Raffreddamento	Aria/Acqua
Min footprint – Ingombro minimo	1200 x 1930 x h 1650 mm
Max footprint (due to axes extension) – Ingombro massimo (con max estensione assi)	1930 x 2800 x 2180 mm
Machine weight – Peso macchina	325 kg
