MPX

AUTOMATIC PLATE MARKING SYSTEM FOR BIG BATCHES

MPX is a laser system exclusively dedicated to marking nameplates, ideal for large-scale production. MPX can accommodate up to 12 different formats.
The nameplates are automatically picked up from the loading magazine and transported to the marking area; once the operation is complete, the nameplate is deposited on an N-position unloading table. With MPX, it is possible to integrate an automatic nameplate turning system for double-sided marking and a barcode/QR code reader for code readability confirmation.

This machine is suitable for:

HIGH PRODUCTIVITY

A valuable aid in the production process to reduce time and maximise profits.

SAFETY

Class 1 machine.

VERSATILITY

For different types of parts, processes, or workable materials.

Revolving store

ciao

Labeller device for automatic protective foil application

Click here

PRODUCTIVE AND AUTOMATIC

MPX can automatically mark entire batches of
different labels (up to 12 different formats: min. 20×20 mm; max. 85×85 mm). MPX can perform the most advanced processes, with various integrations available, such as barcode/QR code reader, automatic film applicator, automatic flipping for front-back marking (for possible additional traceability).

MPX

INSIGHTS

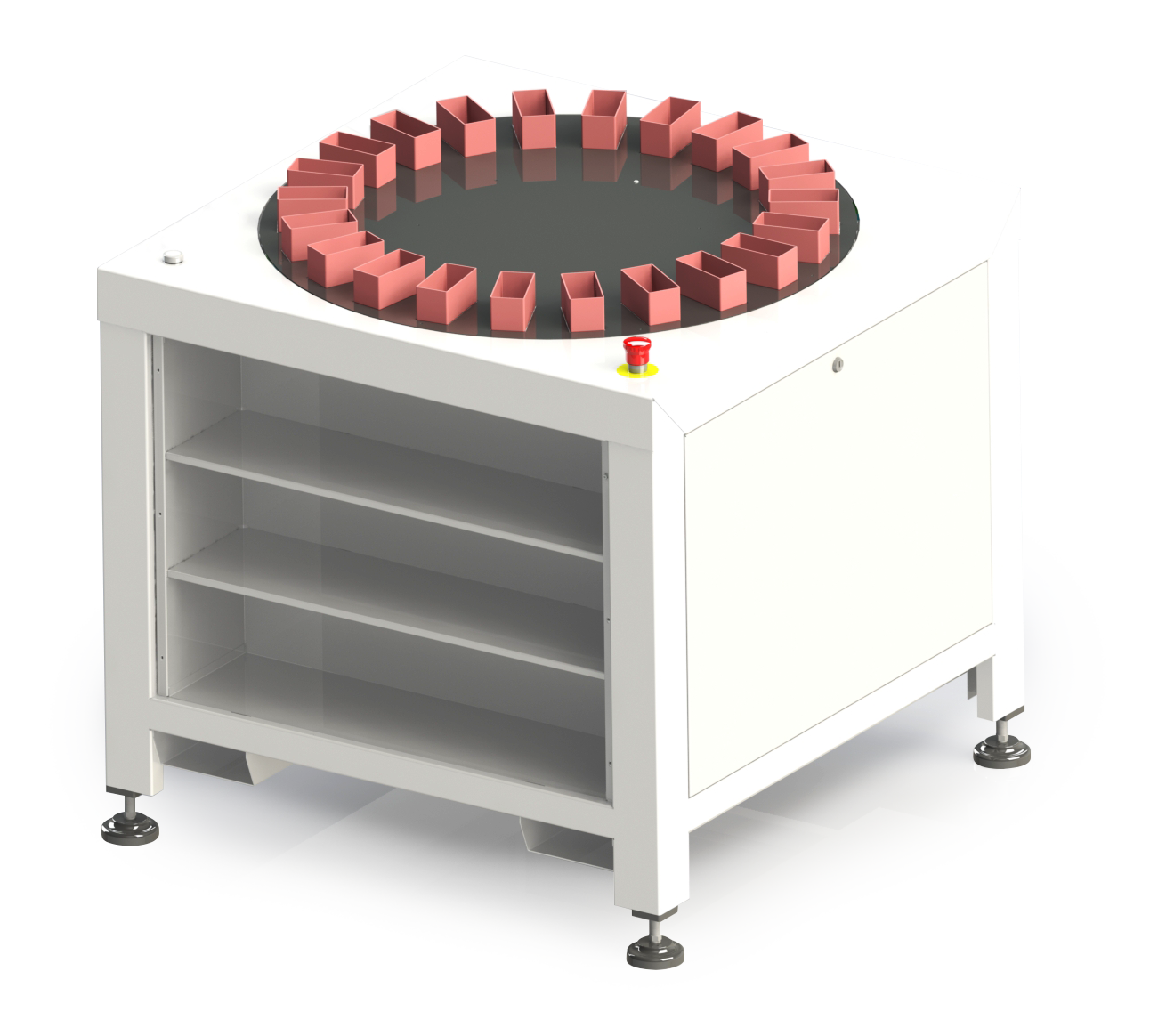

RS unloading system

MPX features a RS unloading system with automatic management of batches, customizable boxes quantity and size and full box sensor.

All SISMA solutions for marking plates

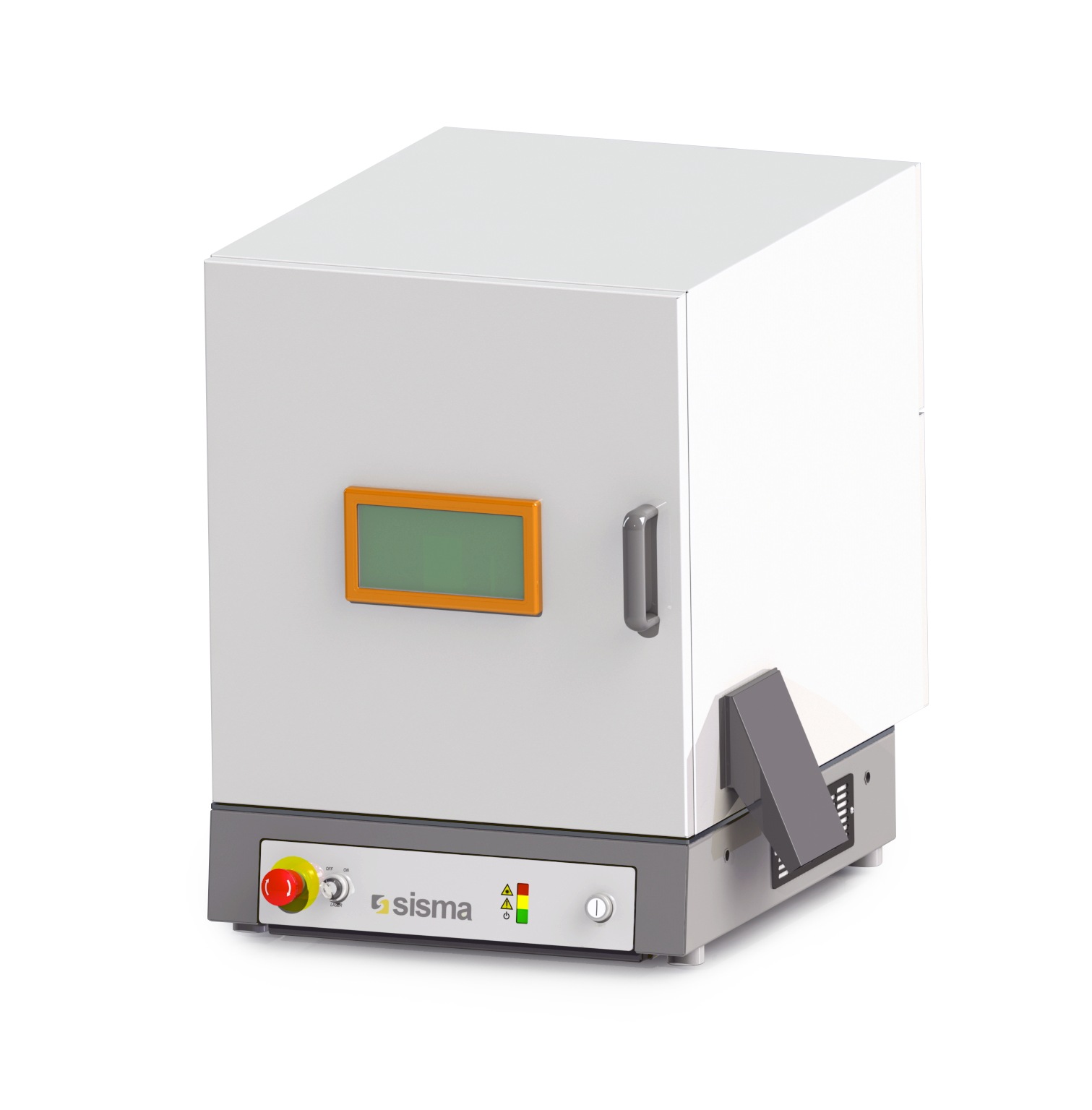

Depending on your requirements, SISMA offers a wide range of compact tabletop laser markers with numerous laser sources and powers available: EASY, EASY-GO, BIG SMARKY, MP1, MPX.

DATI TECNICI	MPX
Number of chargers	Fino a 12
Min. plate size	20 x 20 mm
Max. plate size	85 x 85 mm
Max. loading height	300 mm
Available laser powers	20, 30 W
Machine dimensions	2136 x 1144 x 2000 mm
