LM-D READY

DESKTOP MANUAL LASER WELDING SYSTEM

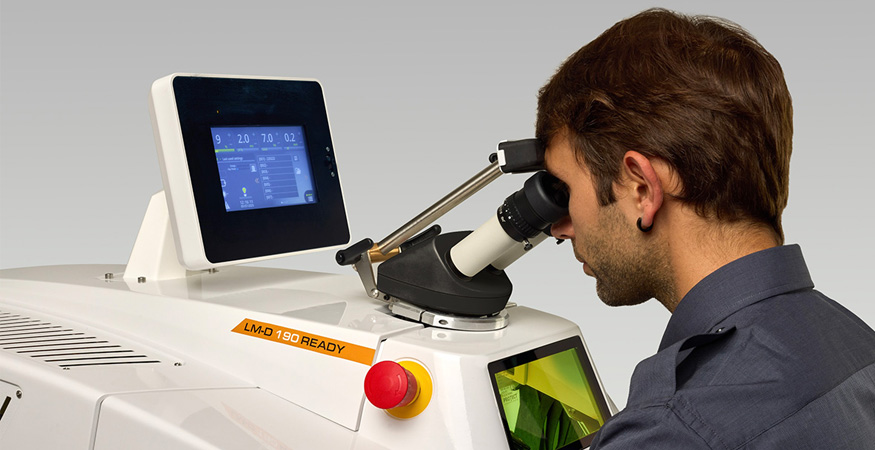

LM-READY is a desktop manual laser welding system designed for high precision processing of metals. Operational efficiency has been completely redesigned to reduce processing times and increase productivity, while the intuitive user interface allows for simple, smooth and immediate control, even in the most complex operations. Its modern and ergonomic design combines comfort, style, and full accessibility during operation. Available only in FLEX version with a 7’’ screen.

This machine is suitable for:

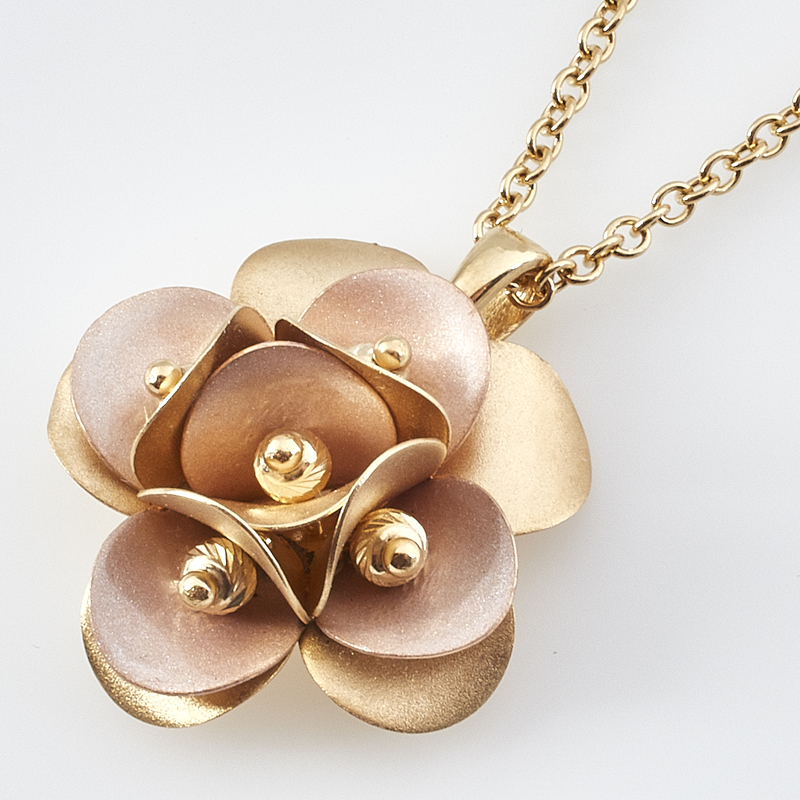

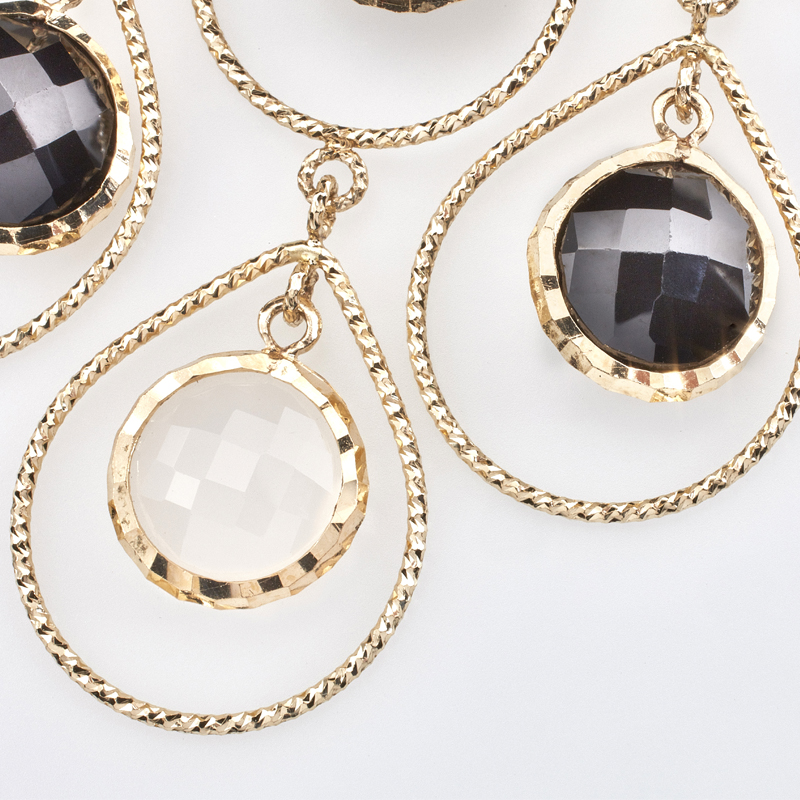

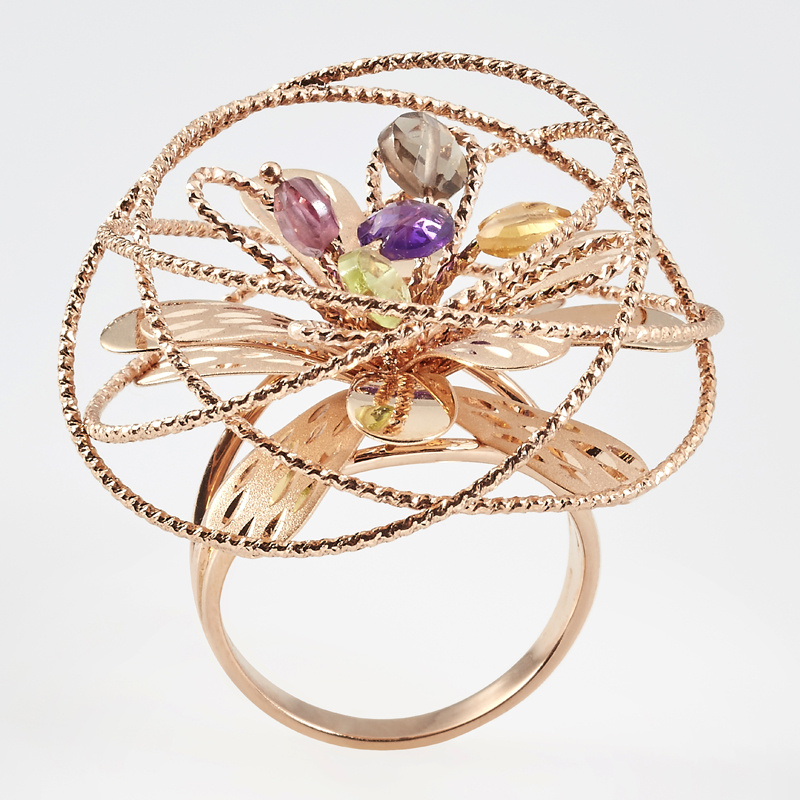

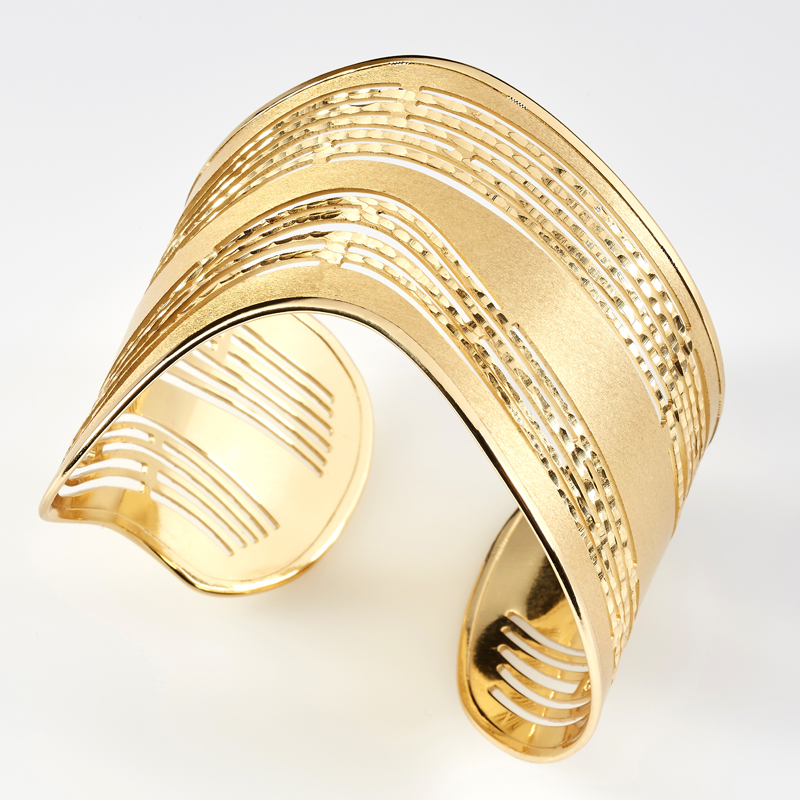

PRECIOUS MATERIALS

Suitable for working precious materials.

EASY OF USE

Also suitable for non-experts.

COMPACTNESS

Small-sized machine, for small space.

Large working chamber

ciao

Available in LYNX version

Click here

SMART ERGONOMICS. UNIVERSAL COMFORT

Designed for a global audience, the new LM-D Series has been completely re-engineered to ensure maximum comfort for operators of all body types and working styles. Every ergonomic detail has been optimized
to support long working sessions with high precision and minimal fatigue.

Reduced arm span, allowing for a more natural posture and less shoulder strain.
Optional headrest and Ergokit for personalized comfort.
Armrest cushions, (Flex version) providing soft, stable support throughout the welding process.
The new LM-D is not just a welding machine – it’s a tool designed to adapt to the operator.

LM-D READY

INSIGHTS

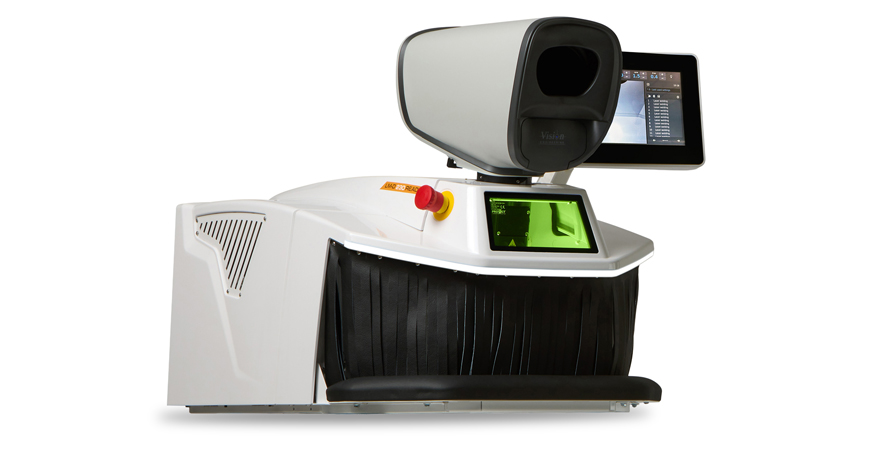

LYNX vision system

LYNX is a special 3D vision system that allows a high-resolution vision of the welding process and, in the meanwhile, an ergonomic
working position. It is particularly suitable when several operators use the machine, as it does not require refocusing.

Ergonomics and efficiency of the LM-D

To meet the specific needs of every professional, the new LM-D Series offers a comprehensive range of optional accessories designed to
enhance efficiency, comfort, and ergonomics.

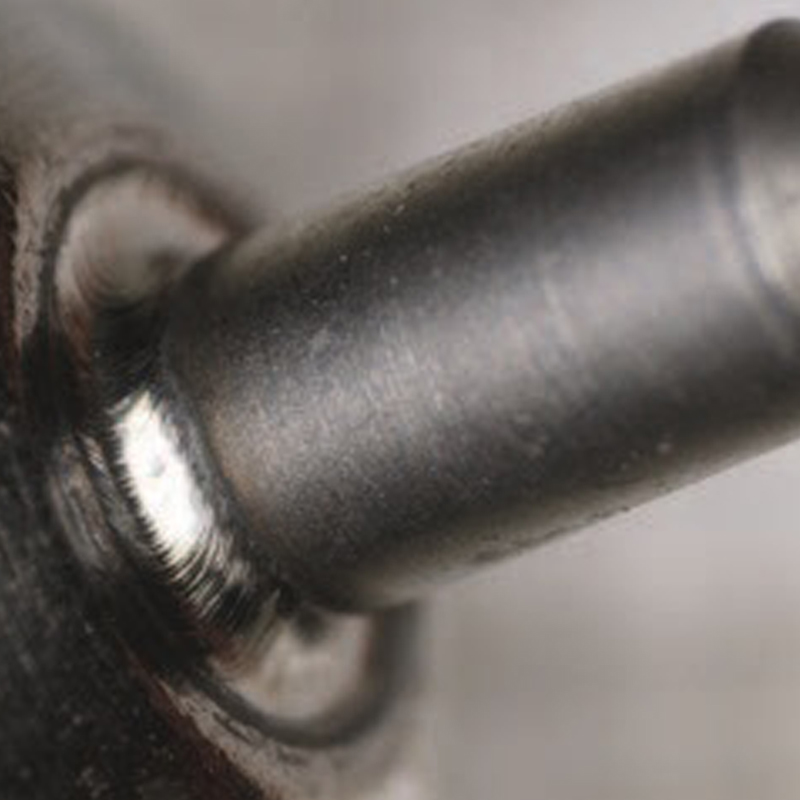

Select the application sector:

Technical data
Description	LM-D 190 READY	LM-D 230 READY
Laser type	Nd:YAG
Laser class	4
Wavelenght	1064 nm
LYNX	not available	available
Pulse duration	0,55 – 25 ms
Pulse repetition rate	0 – 50 Hz
Averagre power achievable	65 W	85 W
Maximum pulse energy	190 J	230J
Peak power	7,5 kW	9 kW
Focal spot diameter	0,2 – 2 mm
Rated voltage	AC 230 V 50/60 HZ
Maximum current	12 A
Display HMI	7″
Plug type	CEE 7/7 (Schuko)

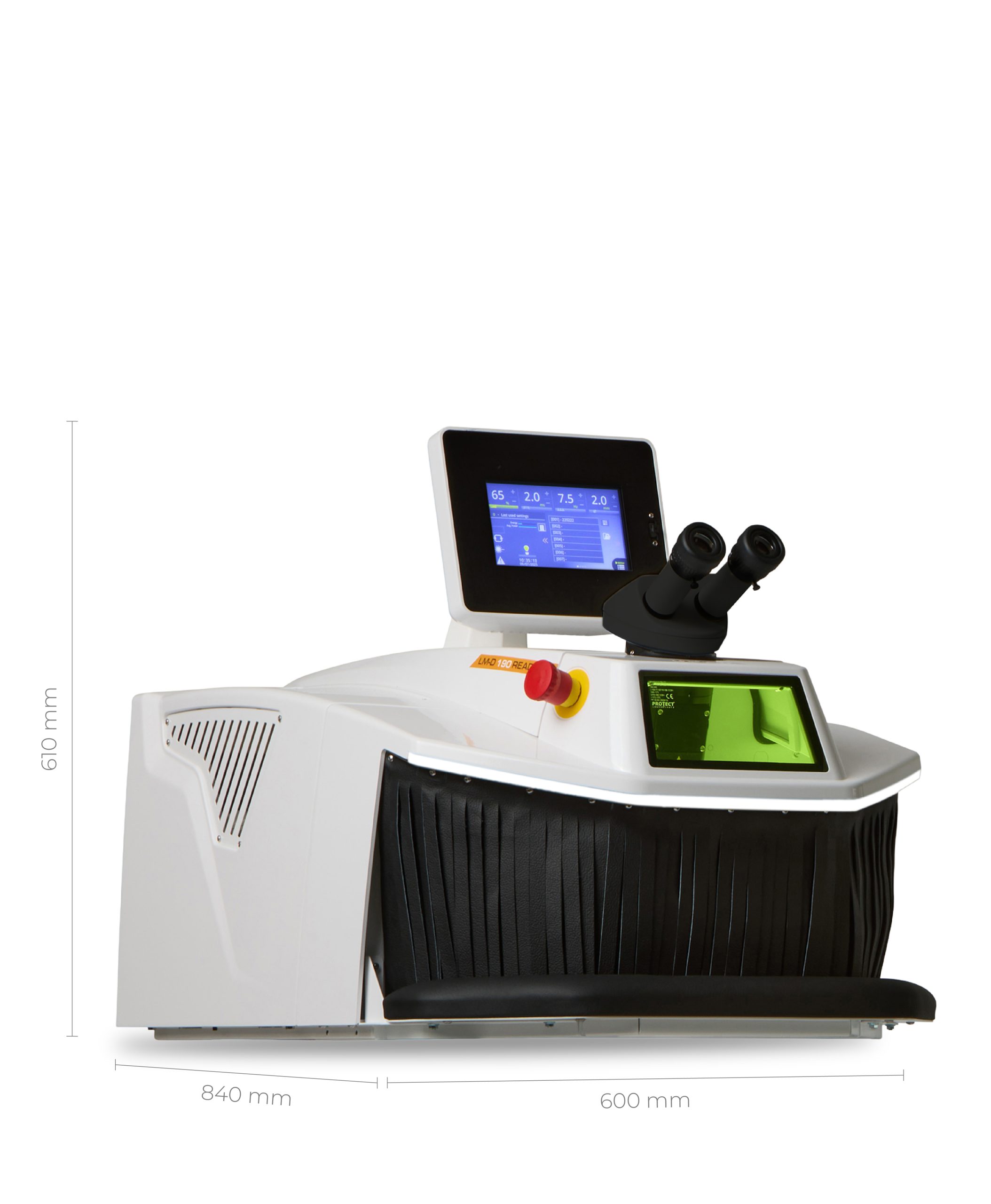

Widt	600 mm	600 (710)* mm
Depth	840 mm	840 (900)* mm
Height	610 mm	610 (640)* mm
Weight	68 kg	68 (73)* kg
		*with LYNX

Lower box for large pieces
Inner chamber camera
Arm rest
Forehead rest
Cone kit for coaxial flow of gas
Ergokit
Ergomodul

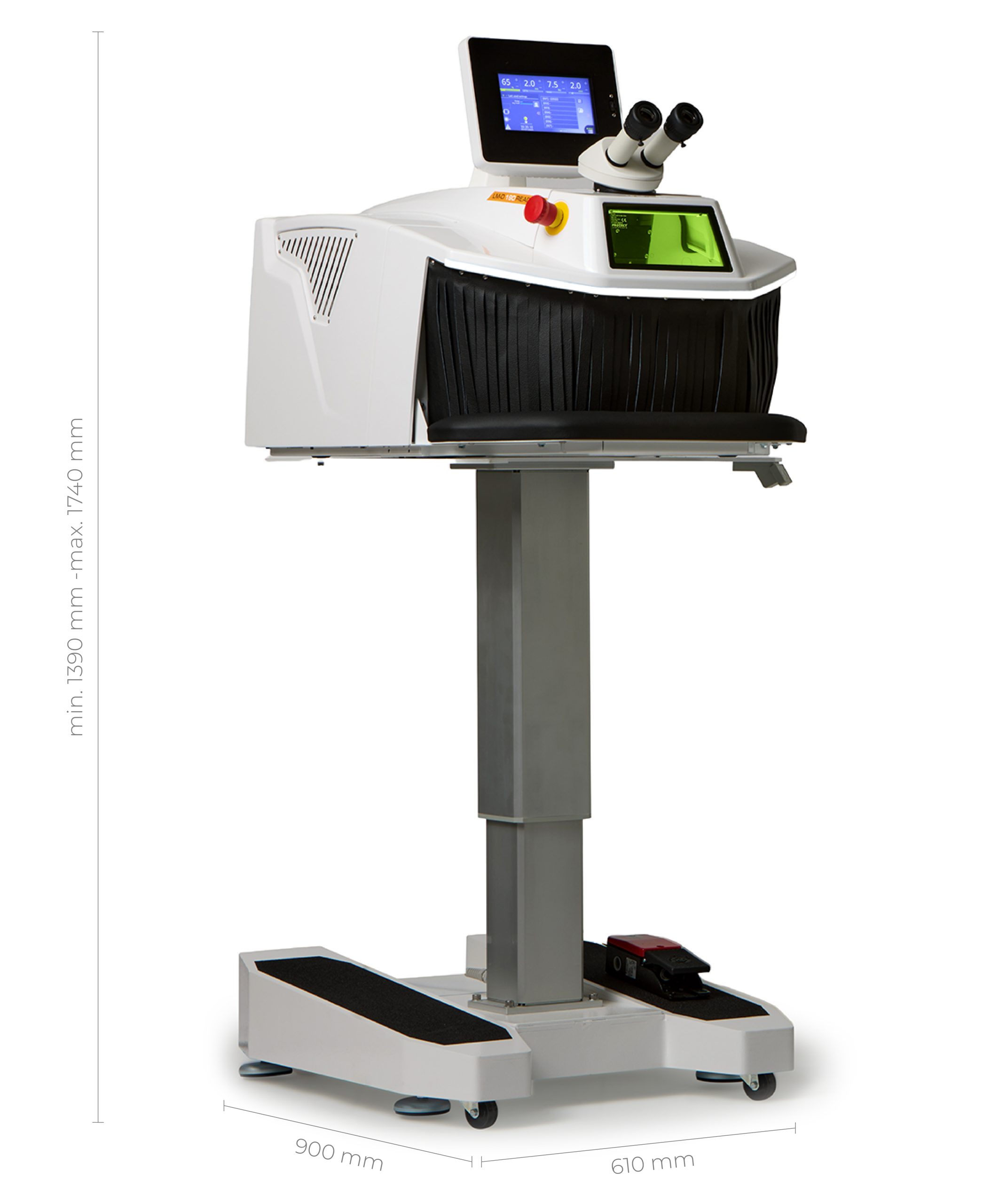

Height-adjustable stand
Machine upper trays (left + right)
Machine side trays (left + right)
Leather FLEX protections (left + right)
Gas bottle holder
Remote assistance

LM-D READY BROCHURE

Technical data
Description	LM-D 190 READY	LM-D 230 READY
Laser type	Nd:YAG
Laser class	4
Wavelenght	1064 nm
LYNX	not available	available
Pulse duration	0,55 – 25 ms
Pulse repetition rate	0 – 50 Hz
Averagre power achievable	65 W	85 W
Maximum pulse energy	190 J	230J
Peak power	7,5 kW	9 kW
Focal spot diameter	0,2 – 2 mm
Rated voltage	AC 230 V 50/60 HZ
Maximum current	12 A
Display HMI	7″
Plug type	CEE 7/7 (Schuko)
Widt	600 mm	600 (710)* mm
Depth	840 mm	840 (900)* mm
Height	610 mm	610 (640)* mm
Weight	68 kg	68 (73)* kg
		*with LYNX
