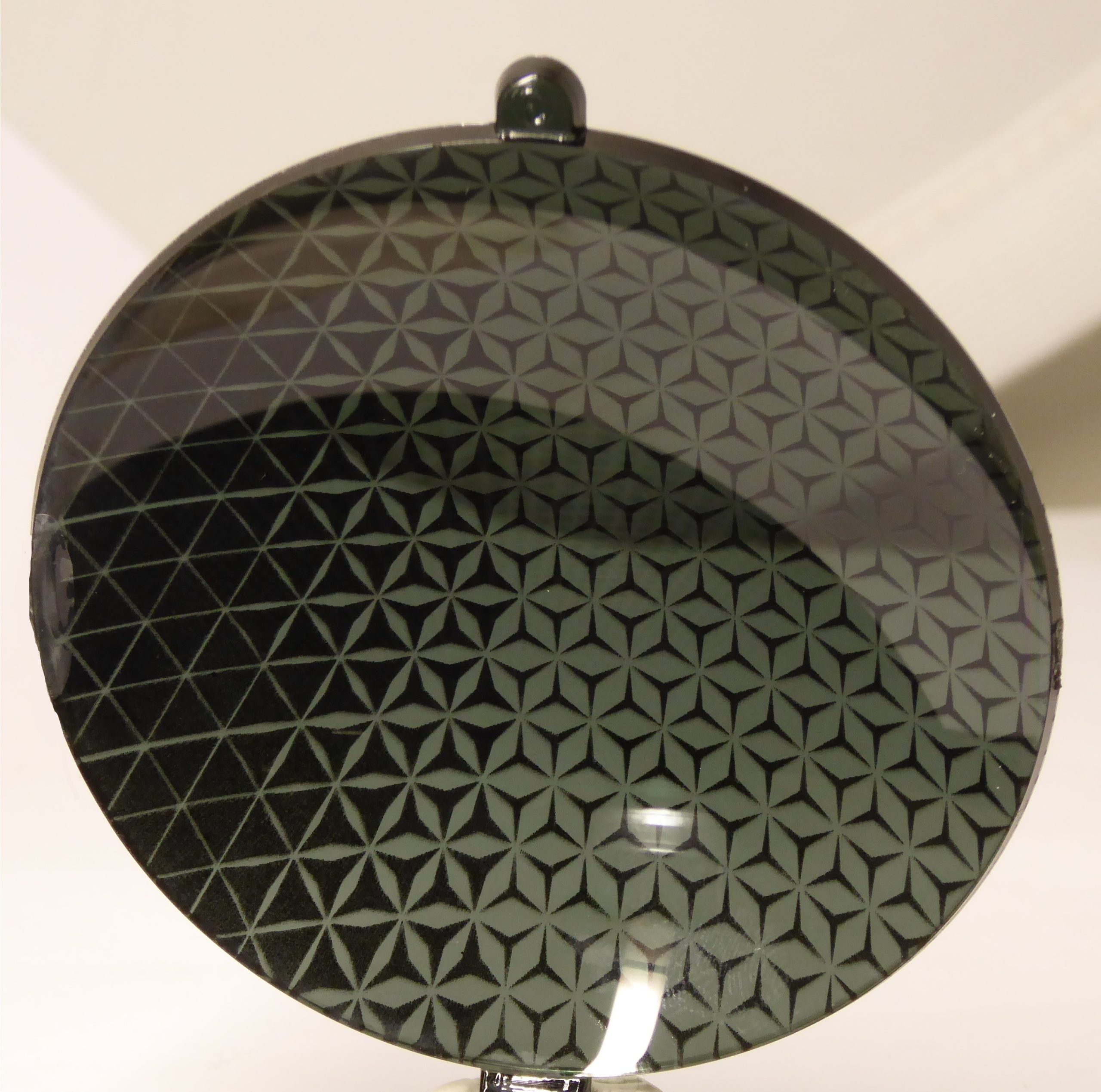

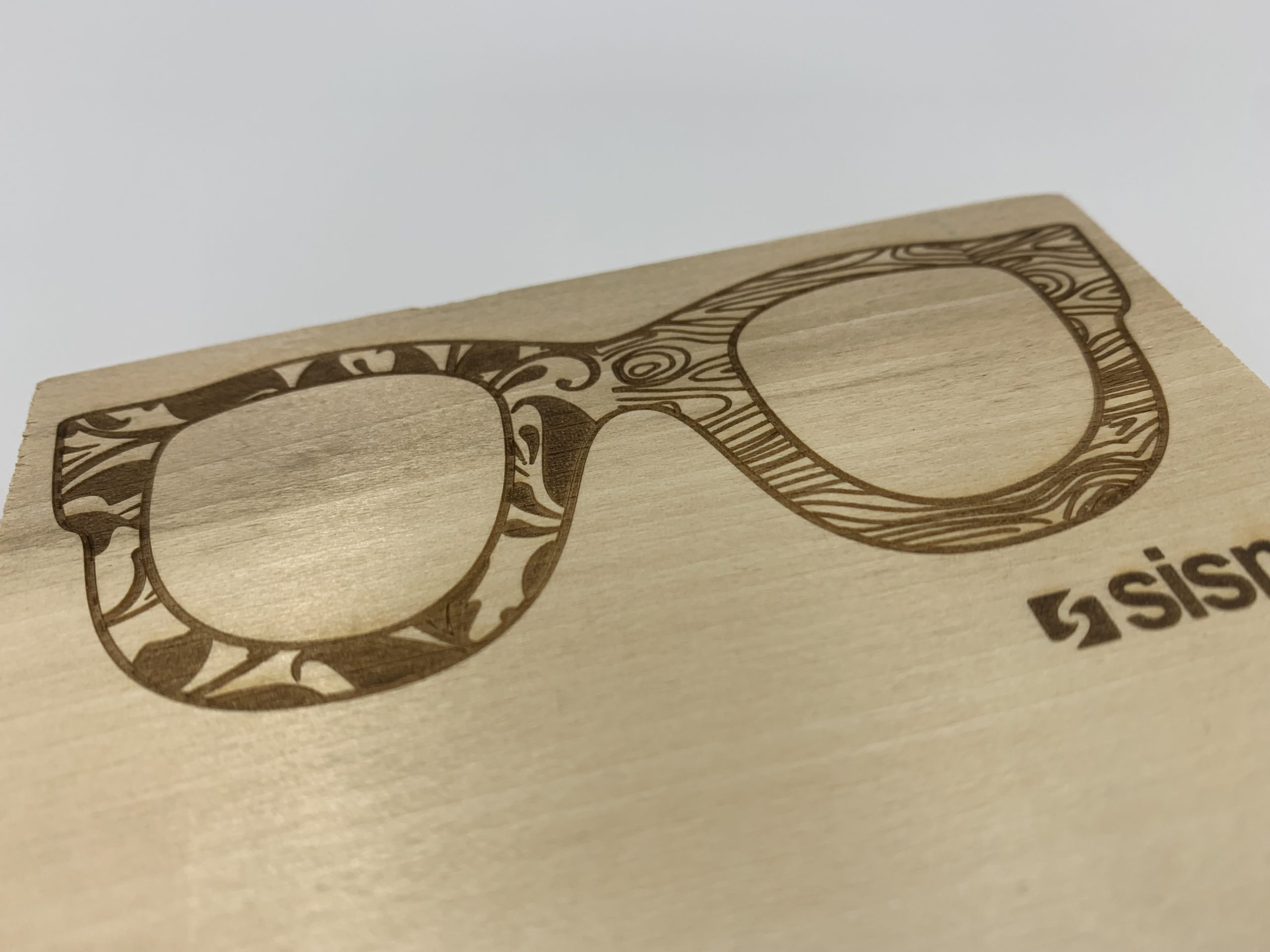

The SMARK CO2 laser source combined with a high-performance galvanometric head makes this laser marker a versatile and reliable system for processing various materials, including organic (wood, paper), inorganic (glass), and certain plastics (particularly polyurethanes, polycarbonates, PET, PVC). The laser marking system is class 1 and has a 490×350 mm work surface and a motorized Z-axis (stroke of 332 mm) offering high precision and speed.
This machine is suitable for:
For processing certain inert, organic, or plastic materials.
Perfect and repeatable centering.
Class 1 machine.
Scanning head and illuminators
SMARK CO2 is a laser marking system with a 20W CO2 source. SMARK CO2 is equipped with a high-performance galvanometric head. SMARK CO2 is a Class 1 laser system, equipped with a certified protective window and double safety shutter for lasers. SMARK CO2 is available both in desktop and standalone version.
Select the application sector:
| DATI TECNICI | SMARK CO2 |
| Laser source | CO2 |
| Wavelength | 10600 nm |
| Average laser power | 20W |
| Pulse frequency | 1 – 200 kHz |
| Beam quality | ≤ 1,2 |
| Laser spot diameter (F250) | 200 µm |
| Z axis stroke | 332 mm |
| Working temperature | 10 °C – 35 °C non condensing |
| Guide laser | Class 2 red laser diode; λ= 650 nm; 2mW |
| Working chamber | 490 mm x 350 mm x h260 mm |
| Power supply | 230 V ± 15% 50/60 HZ 1ph 0,8 kW |

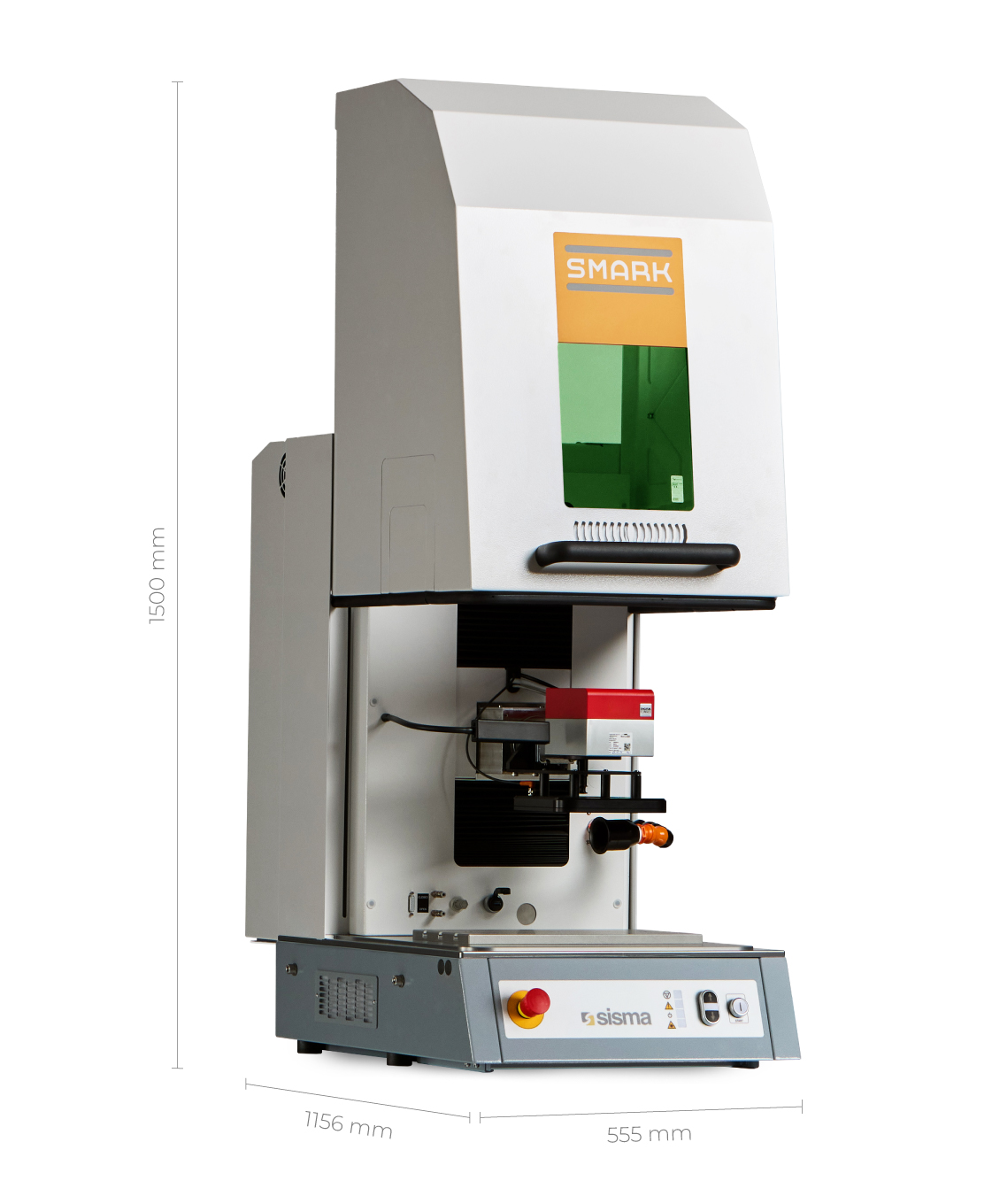

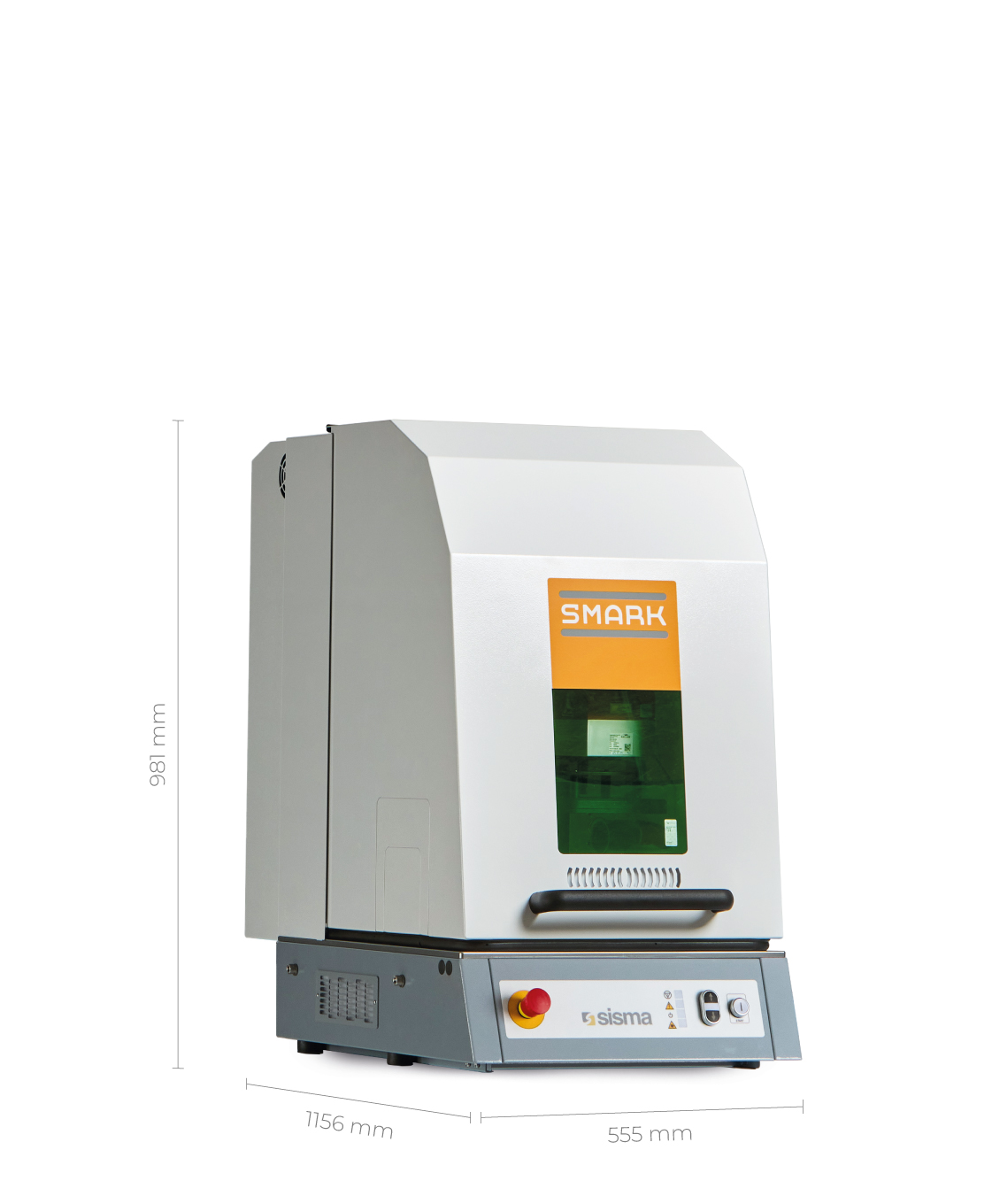

| Dimensions (WxDxH) | 555 mm x 1156 mm x h981 mm ( with open door: h 1501 mm) |
| Weight | 150 kg without base |
| DATI TECNICI | SMARK CO2 |
| Laser source | CO2 |
| Wavelength | 10600 nm |
| Average laser power | 20W |
| Pulse frequency | 1 – 200 kHz |
| Beam quality | ≤ 1,2 |
| Laser spot diameter (F250) | 200 µm |
| Z axis stroke | 332 mm |
| Working temperature | 10 °C – 35 °C non condensing |
| Guide laser | Class 2 red laser diode; λ= 650 nm; 2mW |
| Working chamber | 490 mm x 350 mm x h260 mm |
| Power supply | 230 V ± 15% 50/60 HZ 1ph 0,8 kW |
| Dimensions (WxDxH) | 555 mm x 1156 mm x h981 mm ( with open door: h 1501 mm) |
| Weight | 150 kg without base |
Baseplate.
CVS Coaxial Vision System
Automatic door.
Pattern Matching (PM)is a software modul
that automatically recognizes one or more
shapes, even simultaneously, and
allows for consequent alignment and execution
of the laser process (marking, engraving, cut,
etc.).
Motorised spindles with numerous options of
grippers.
Foot control.
