SWT is a laser welding system designed for the repair and maintenance of transportable moulds (maximum dimensions 400 x 400 x 320 mm and up to 120kg).
The 180° door opening system allows for easy positioning of bulky components.

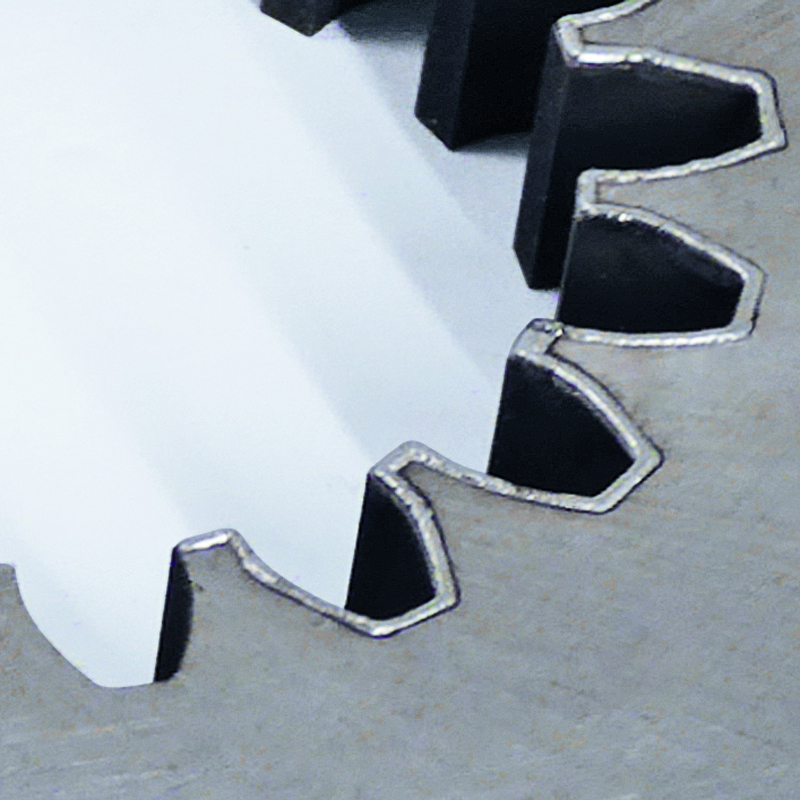

SWT allows welding in complex spots, such as narrow and deep grooves, internal or external edges.
Depending on the type of filler wire used, high hardnesses can be achieved on the repaired mould, making subsequent heat treatment unnecessary.

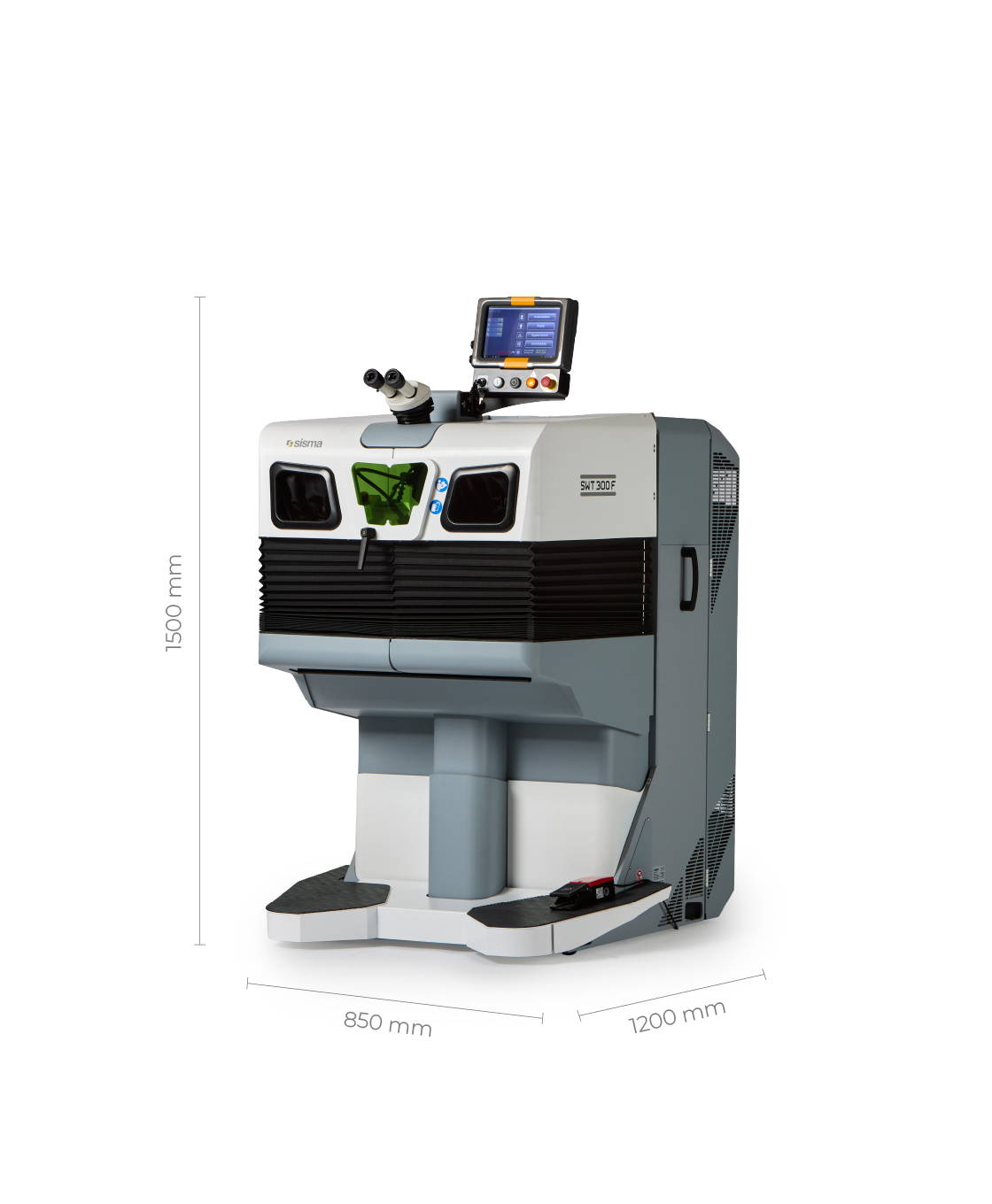

SWT is available either in open (Class 4) or closed (Class 1) variant, and with either a flash-lamp Nd:YAG or fibre laser source.
This machine is suitable for:
Highest quality standards for the most demanding applications.
Robust structure ensures process stability.
With up to 4 interpolated axes.

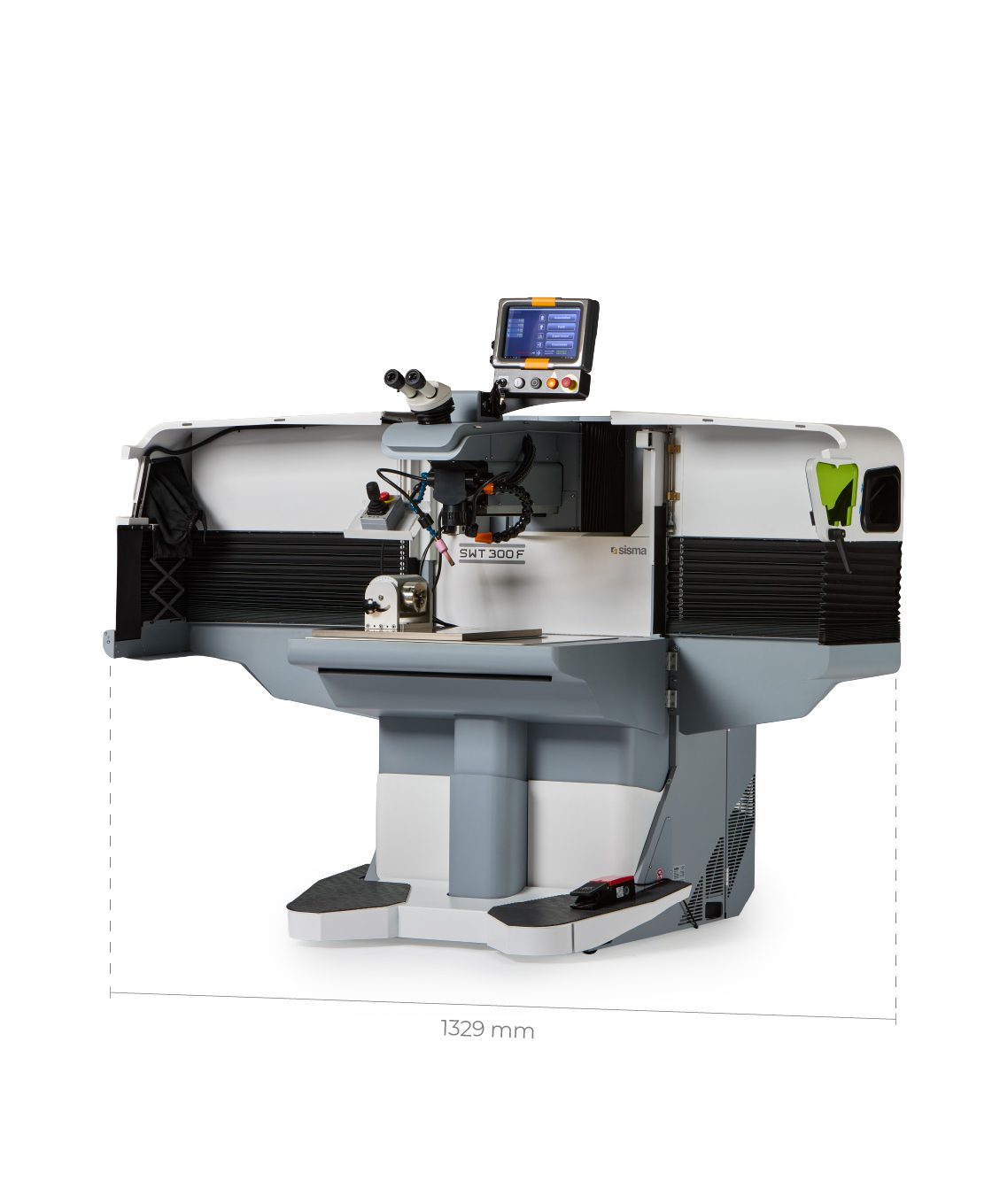

Full door opening
The optimised software allows recipe uploading, process and performance monitoring, and remote assistance, ensuring repeatable results.
The robust and ergonomic design makes the system suitable even for long working sessions.
| Dati Tecnici | 150 | 150F | 300F | 450F |
| Sorgente laser | Nd: YAG (flash lamp) | Fibra | ||
| Lunghezza d’onda | 1064 nm | 1070 nm | ||
| Potenza media laser | 150 W | 150 W | 300 W | 450 W |
| Potenza di picco | 1,5 kW | 1,5 kW | 3 kW | 4,5 kW |
| Max energia impulso | 75 J | 15 J | 30 J | 45 J |
| Durata impulso | 0,3 -25 ms | 1-50 ms / CW | ||
| Diametro spot laser | 0,6 – 2 mm | 0,1 – 2 mm | ||
| Alimentazione | 400 V 50/60 Hz 3ph | 230 V 50/60 Hz 1ph | ||
| Dimensione max pezzo | 400 x 400 x h 320 mm | |||
| Carico massimo | 120 kg | |||
| Corsa asse X | 300 mm | |||
| Corsa asse Y | 200 mm | |||
| Corsa asse Z | 320 mm | |||
| Dimensioni macchina | 1040 x 1300 x h 1600 mm | |||
| Peso macchina | 530 kg (cl.4) | |||
