SL 35/50/80

PULSED LASER SOURCE

SL identifies a series of laser systems for automatic welding designed for applications where high speed and precision is required.
The main component of the system is the fully developed and manufactured Nd:YAG flash-lamp laser source. Different sizes are available: 35W, 50W and 80W average power, available in PLUS and GO versions. The laser radiation is transported via an optical fibre which can be chosen in various sizes depending on the application.
Equipped with a powerful water cooling system, it achieves constant and repeatable pulses in all conditions. The PLUS version with Cruise Control system, ensures the stability of each pulse energy even under the most severe conditions.

This machine is suitable for:

PRECISION AND REPEATABILITY

Highest quality standards for the most demanding applications.

VERSATILITY

For different types of parts, processes, or workable materials.

HIGH PRODUCTIVITY

A valuable aid in the production process to reduce time and maximise profits.

TECHNICAL DATA	SL 35	SL 50	SL 80
Laser	Nd: YAG – 1064 nm	Nd: YAG – 1064 nm	Nd: YAG – 1064 nm
Average laser power	50 W	60 W	80 W
Pulse peack power	3,5 kW	7,5 kW	7,5 kW
Max pulse energy	25 J	30 J	70 J
Pulse frequency	0 – 50 Hz	0 – 50 Hz	0 – 50 Hz
Pulse duration	0,3 – 25 ms	0,3 – 25 ms	0,3 – 25 ms
Power supply	230 V 50/60 Hz 1ph	230 V 50/60 Hz 1ph	230 V 50/60 Hz 1ph
Cooling	Air / water	Air / water	Air / water
Cruise Control	On Plus version

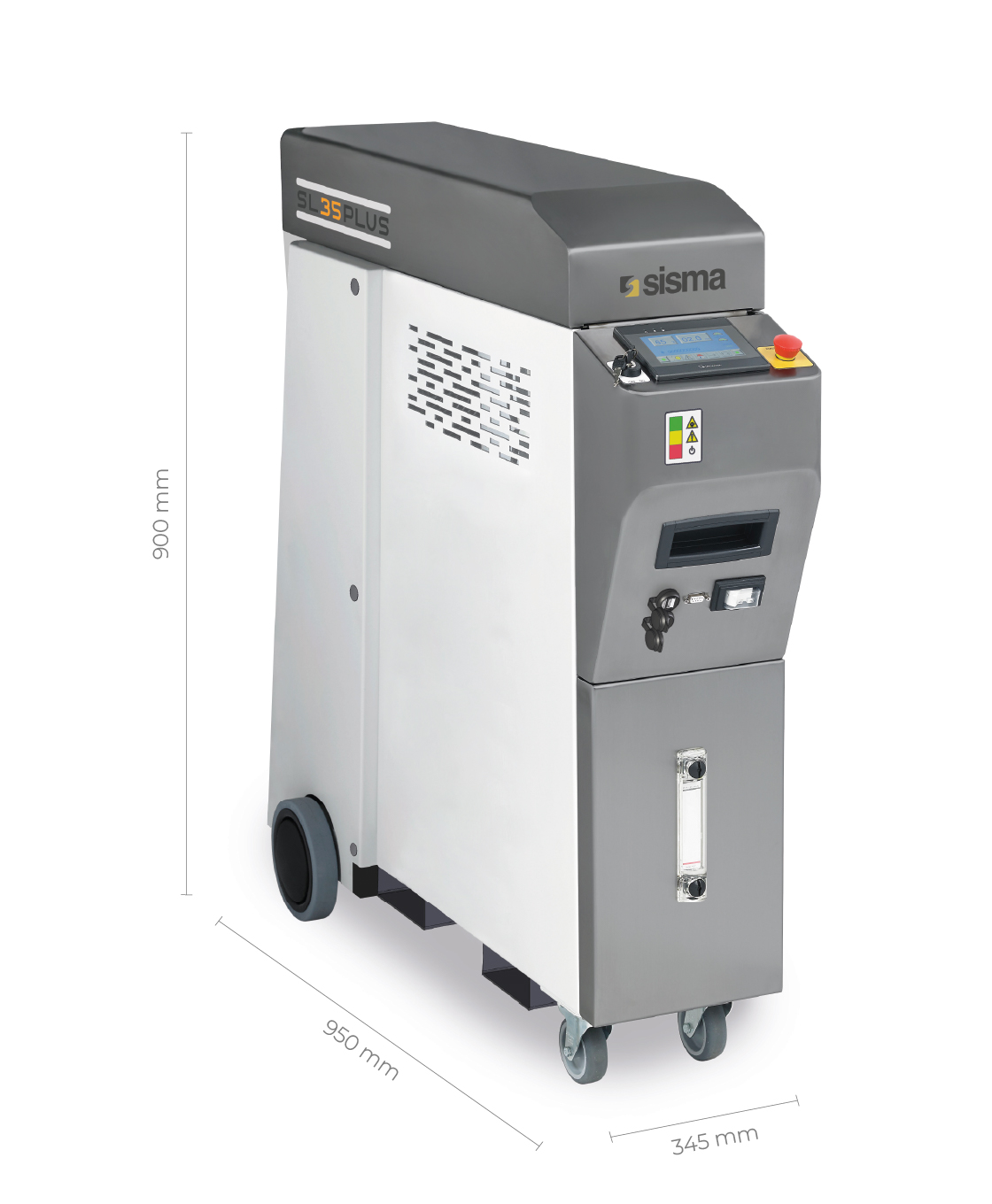

Machine dimensions	345 x 950 x h 900 mm	345 x 950 x h 900 mm	345 x 950 x h 900 mm
Machine weight	100 kg	100 kg	100 kg
