LASER MARKING AND ENGRAVING SYSTEM WITH ROTATING TABLE

SART is a marking and engraving system with two-position rotary table, which allows workpiece loading/unloading at the same time as machining to reduce downtime. UV and C02 sources are also available for marking on plastic, organic and inorganic materials.
The large working area (700 mm diameter table) allows high productivity.

This machine is suitable for:

HIGH PRODUCTIVITY

A valuable aid in the production process to reduce time and maximise profits.

VERSATILITY

For different types of parts, processes, or workable materials.

CVS COAXIAL VISION SYSTEM

Perfect and repeatable centering.

Rotary table

ciao

Spindle machining

Click here

STURDY AND VERSATILE

Repeatability and stability of results are ensured by the sturdy structure and high quality of the components used. The 50 W Pico MOPA source can handle long-lasting processes thanks to its water-cooled scanning head.
SART can be equipped with a coaxial vision system (CVS) with camera and an automatic part recognition system (PM) with automatic marking on scattered parts.

SART

INSIGHTS

Mass production with Pattern Matching

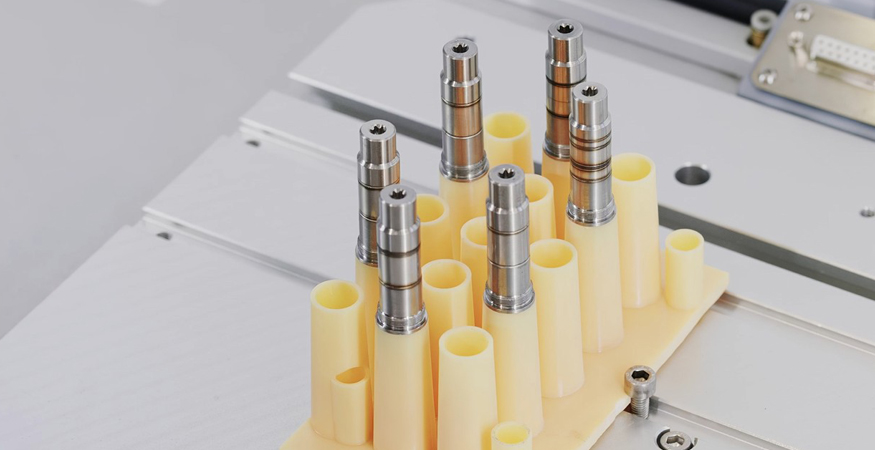

The large size of the worktable allows for quick and easy serial machining thanks to the Pattern Matching system, which automatically recognises the object and performs perfectly positioned marking.

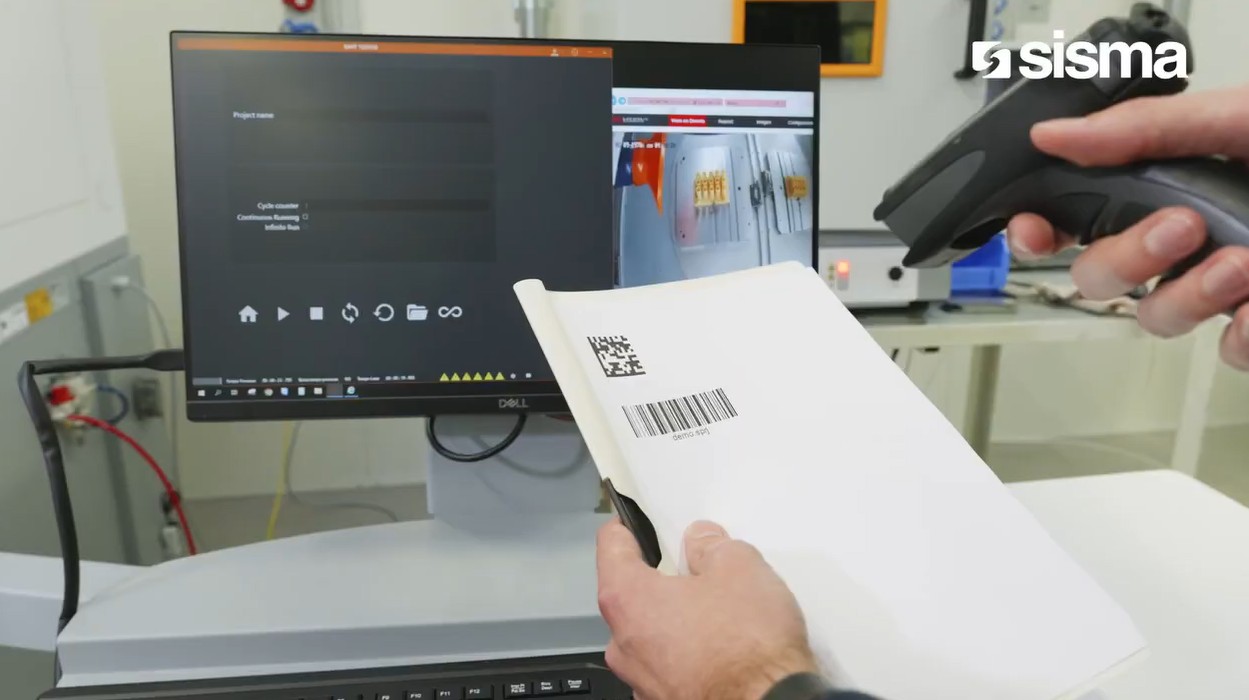

Project loading with bar code/QR code

One possible way of entering the design
machine is by loading it by reading a
bar-code or QR code. Otherwise, it is also possible to draw directly from a company data base.

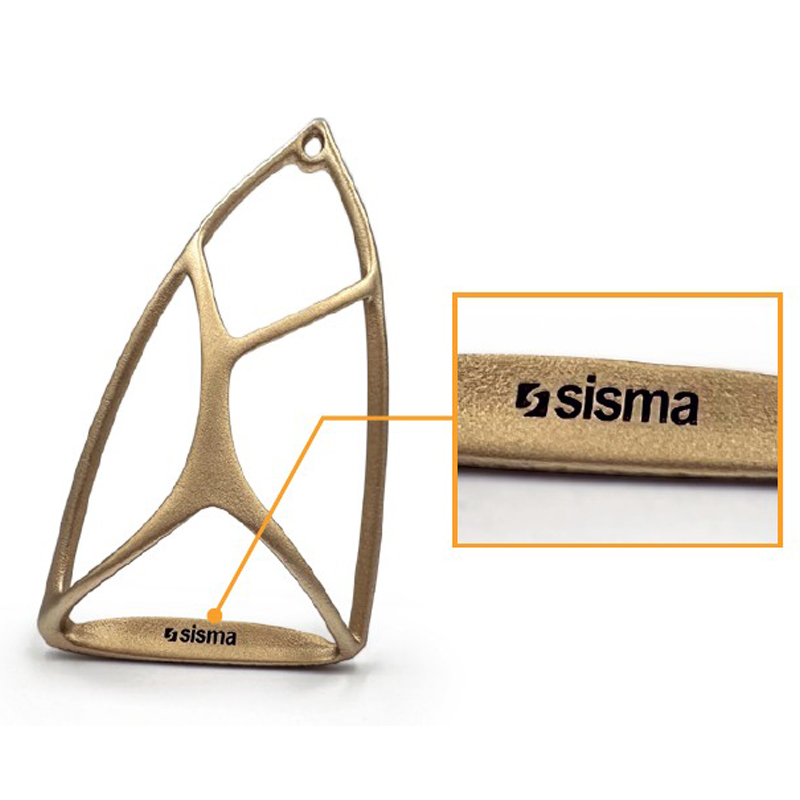

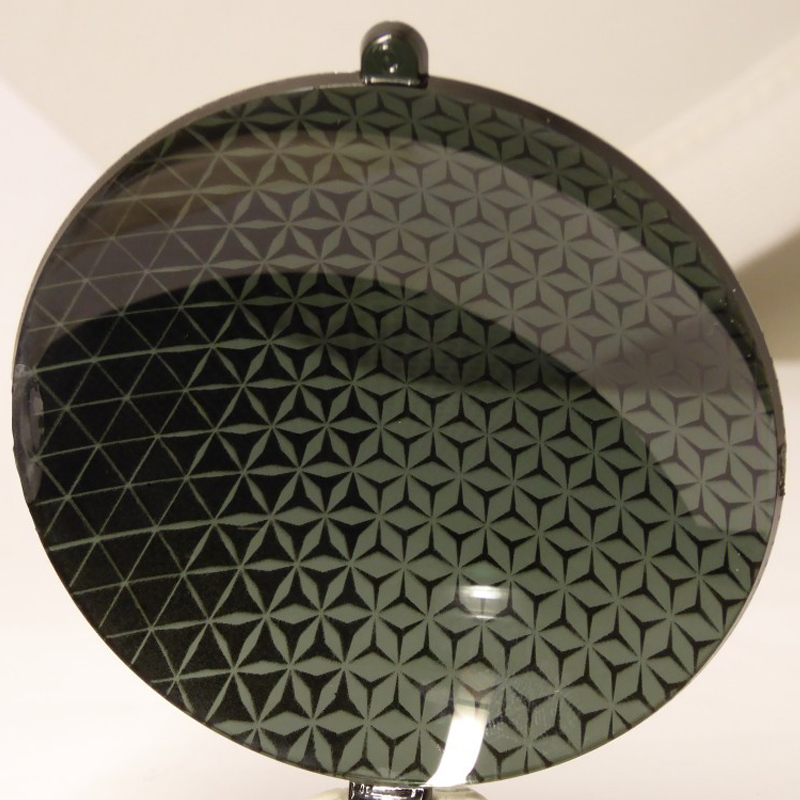

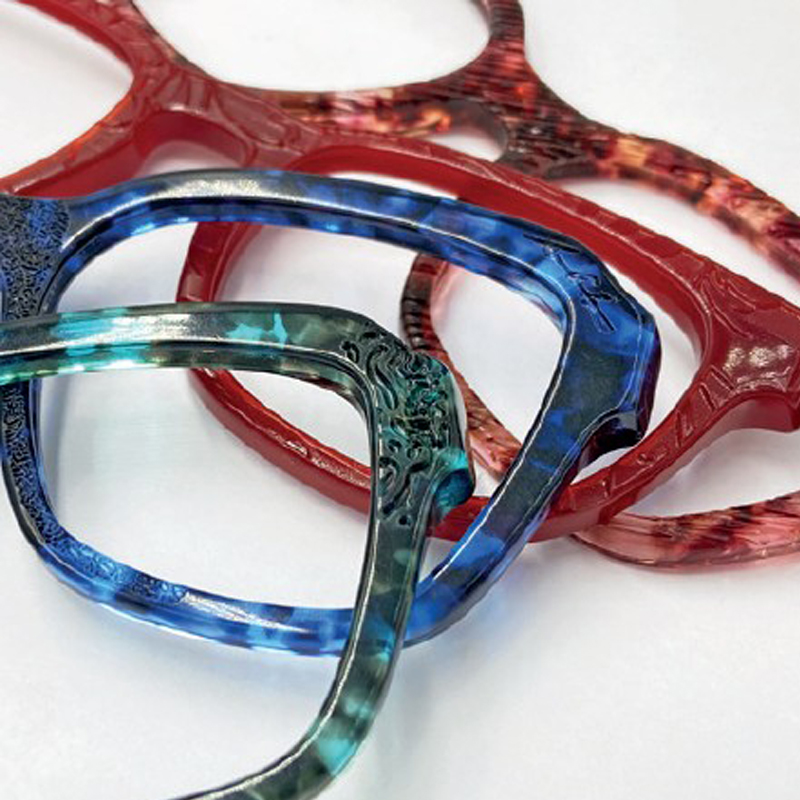

Select the application sector:

Technical data	SART 200 EP	SART 500F EP	SART 500F PICO	30CO2	SART 60UV
Active material	Yb	Yb	Yb	CO2	Nd
Average power	1064 nm	1064 nm	1030 nm	10600 nm	355 nm
Wave length	20 W	50 W	50 W	30 W	6 W
Working frequency	1 ÷ 1000 Khz	1 ÷ 1000 Khz	50 ÷ 2000 Khz	0 ÷ 100 Khz	0 ÷ 500 Khz
Impulse duration	3 – 500 ns	6 – 500 ns	0,001 ns		12 ns
Peak power	> 10 kW	> 10 kW	> 10 kW		5 kW
Pulse energy	>1 mJ	>1 mJ	>0,025 mJ		0,06 mJ
Beam quality	< 1,6	< 1,6	< 1,4	< 1,2	< 1,3
Marking speed	2000 mm/s	2000 mm/s	5000 mm/s	7600 mm/s	1800 – 7600 mm/s
Axes repeatability	2 µrad	2 µrad	2 µrad	2 µrad	2 µrad
Carrying capacity	7,5 kg	7,5 kg	7,5 kg	7,5 kg	7,5 kg
Working area	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm
Cooling system	Air	Air	Water	Air	Air
Power supply	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket
Power absorption	1 kW	1 kW	1 kW	1 kW	1 kW

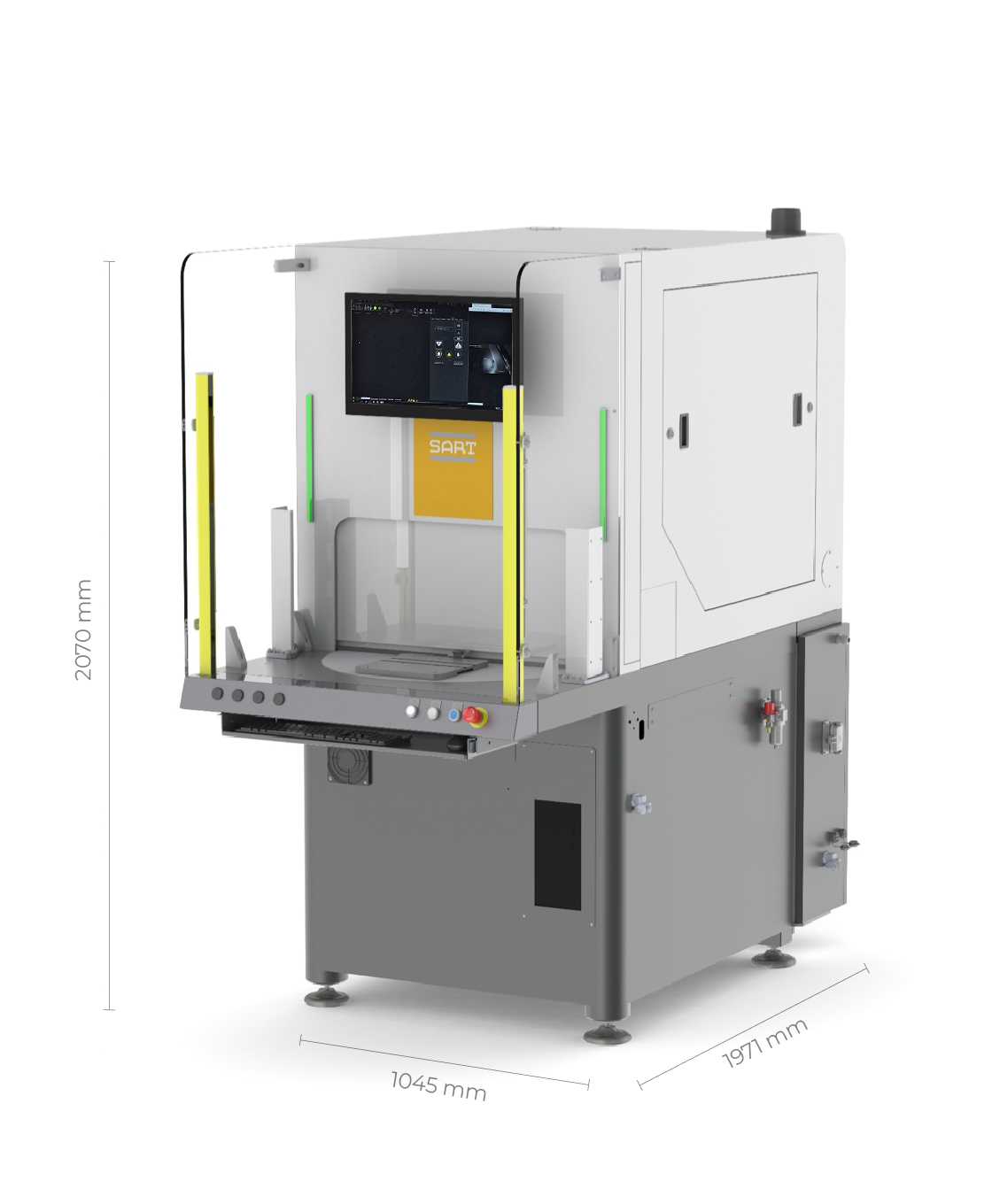

Dimensions (L x D x H)	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm
Weight	740 kg	740 kg	740 kg	740 kg	740 kg

• Coaxial Vision System (CVS)
• Pattern Matching software (PM)
• Rotary spindles
• Fume extraction systems

SART BROCHURE

Technical data	SART 200 EP	SART 500F EP	SART 500F PICO	30CO2	SART 60UV
Active material	Yb	Yb	Yb	CO2	Nd
Average power	1064 nm	1064 nm	1030 nm	10600 nm	355 nm
Wave length	20 W	50 W	50 W	30 W	6 W
Working frequency	1 ÷ 1000 Khz	1 ÷ 1000 Khz	50 ÷ 2000 Khz	0 ÷ 100 Khz	0 ÷ 500 Khz
Impulse duration	3 – 500 ns	6 – 500 ns	0,001 ns		12 ns
Peak power	> 10 kW	> 10 kW	> 10 kW		5 kW
Pulse energy	>1 mJ	>1 mJ	>0,025 mJ		0,06 mJ
Beam quality	< 1,6	< 1,6	< 1,4	< 1,2	< 1,3
Marking speed	2000 mm/s	2000 mm/s	5000 mm/s	7600 mm/s	1800 – 7600 mm/s
Axes repeatability	2 µrad	2 µrad	2 µrad	2 µrad	2 µrad
Carrying capacity	7,5 kg	7,5 kg	7,5 kg	7,5 kg	7,5 kg
Working area	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm	250 mm x 260 mm
Cooling system	Air	Air	Water	Air	Air
Power supply	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket	230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket
Power absorption	1 kW	1 kW	1 kW	1 kW	1 kW
Dimensions (L x D x H)	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm	1045 mm x 1971 mm x 2070 mm
Weight	740 kg	740 kg	740 kg	740 kg	740 kg
