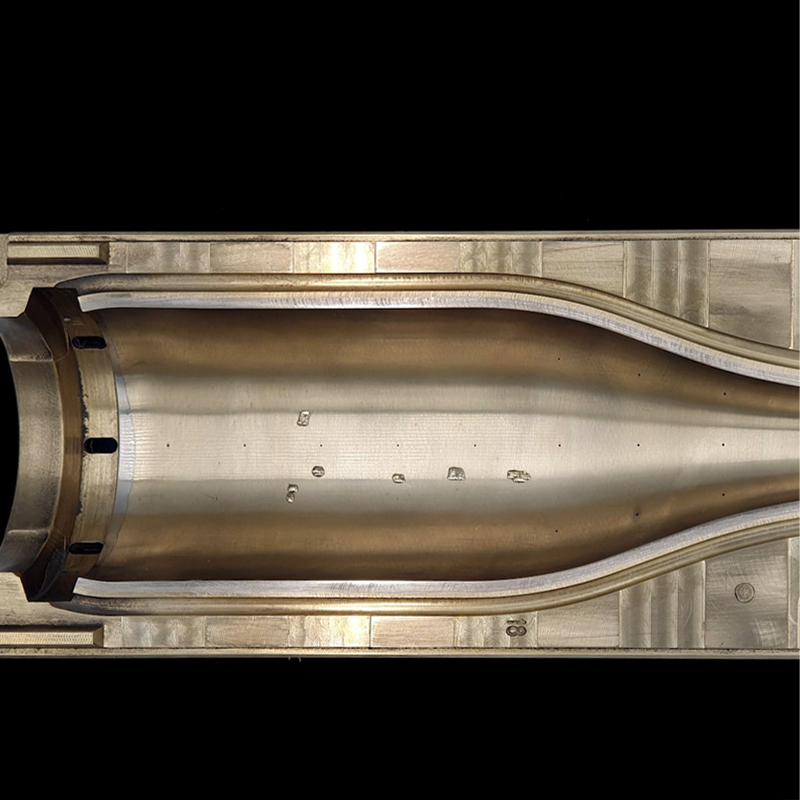

SWA 120 is a semi-automatic laser welding system on wheels, specially designed to carry out maintenance or repair work on large moulds.
Its structure allows the welding head to be positioned in hard-to-reach areas, especially when the workpiece cannot be moved due to its weight and size.
SWA is equipped with a Nd:YAG flash-lamp laser source with water cooling and fibre-optic transmission.
It is designed for companies that do not require continuous or particulary heavy-duty use of the welder but still want an effective and efficient tool.
This machine is suitable for:
Also suitable for non-experts.
Robust structure ensures process stability.
Wheeled machine/easy to move.

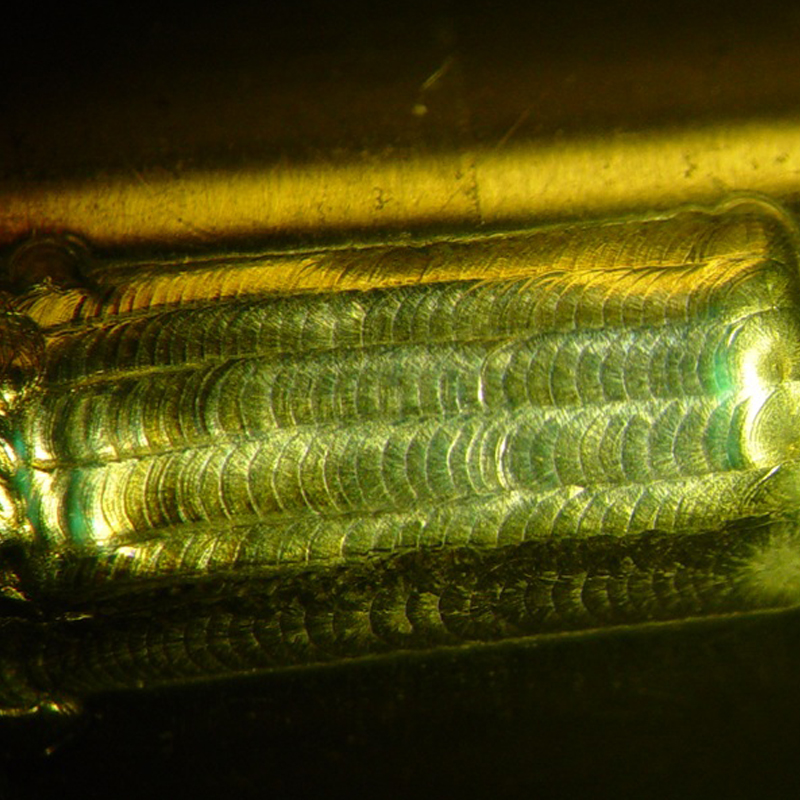

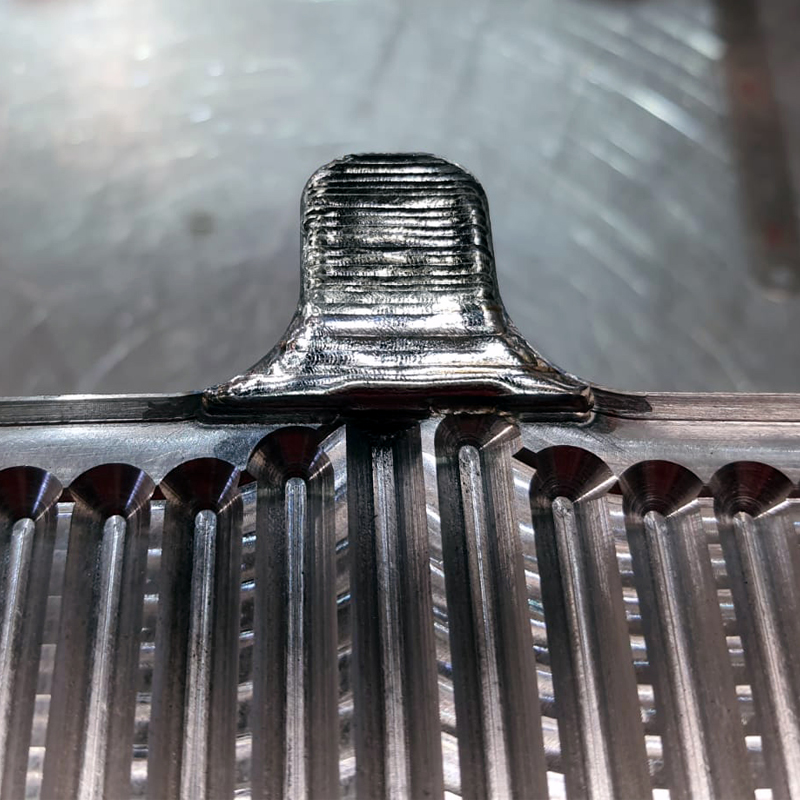

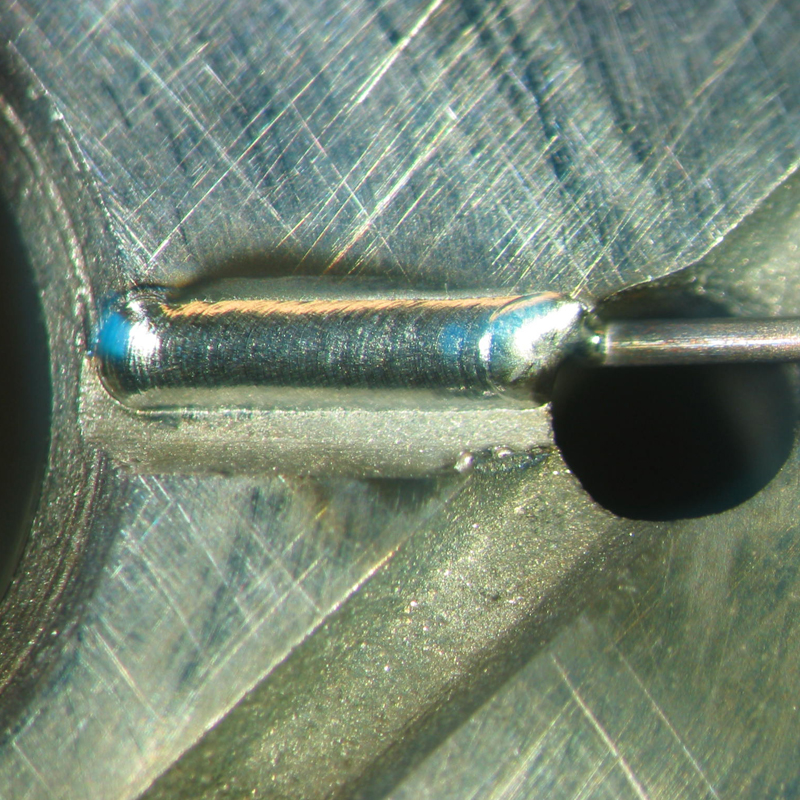

Repair with filler wire
The advanced, intuitive, and feature-rich software, designed to simplify and automate operations, makes the system easy to use even for inexperienced operators.
The use of high-quality components, Italian manufacturing, and our timely service, from process consulting to technical assistance, guarantee total reliability.
| Techinical Data – Dati Tecnici | 120 |
| Source type – Sorgente laser | Nd: YAG (flash lamp) |
| Wavelenght – Lunghezza d’onda | 1064 nm |
| Average laser power – Potenza media laser | 120 W |
| Peack power – Potenza di picco | 9 KW |
| Max pulse energy – Max energia impulso | 65 J |
| Pulse duration – Durata impulso | 0,3 -25 ms |
| Laser spot diameter – Diametro spot laser | 0,6 – 2 mm |
| Power supply- Alimentazione | 230 V 50/60 Hz 1ph – 1 kW |
| 400 V 50/60 Hz 3ph – 3,5 kW | |
| X axis stroke – Corsa asse X | 300 mm |
| Y axis stroke – Corsa asse Y | 150 mm |
| Z axis stroke – Corsa asse Z | 500 mm |
| Moving speed – Velocità di movimento | 0,1 -30 mm/s |
| Vision system – Sistema di visione | Binoculare |
| Cooling – Raffreddamento | Aria/Acqua |

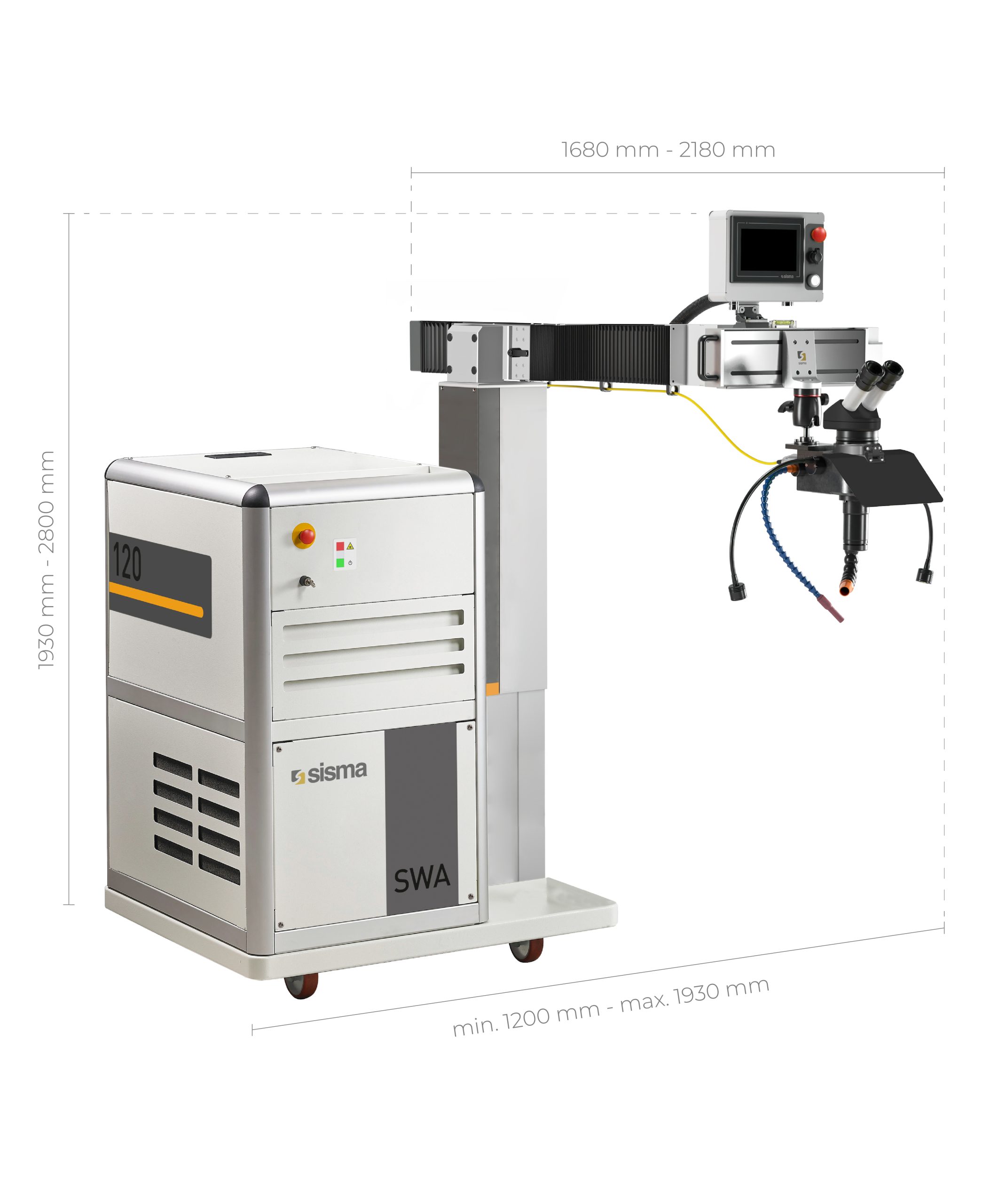

| Min footprint – Ingombro minimo | 1200 x 1930 x h 1650 mm |
| Max footprint (due to axes extension) – Ingombro massimo (con max estensione assi) | 1930 x 2800 x 2180 mm |
| Machine weight – Peso macchina | X kg |
