WH-10P

AUTOMATIC STORAGE SYSTEM WITH 10 PALLETS

WH-10P is an automatic 10-pallet warehouse that can be combined with the BSP marking system.
The pallets are fully customisable. All loading/unloading, inspection and monitoring operations are automatic and can be managed by the marking system’s SLC³ software, in a single interface.
The same software allows real-time compilation of a report on the work performed.
The system allows small series of pieces to be loaded, even from different batches within the same warehouse, to recognise them automatically and process them accordingly.

This machine is suitable for:

HIGH PRODUCTIVITY

A valuable aid in the production process to reduce time and maximise profits.

VERSATILITY

For different types of parts, processes, or workable materials.

SAFETY

Class 1 machine.

Loading pallets while machine is working

ciao

Click here

INTUITIVE PROCESS MANAGEMENT

All automatic loading/unloading, inspection and monitoring operations can be managed from the SLC³ software of the marking system in a single interface.
The same software allows remote monitoring and real-time compilation of a report of the work performed.

Select the application sector:

DATI TECNICI
Number of pallets	10
Maximum lift capacity	50 kg (all pallets + pieces )
Max load on single level	10 kg (one pallet + pieces)
Max piece height on tray	30 mm (60 mm, subject to limitations)
Pallet dimensions	300 mm x 300 mm

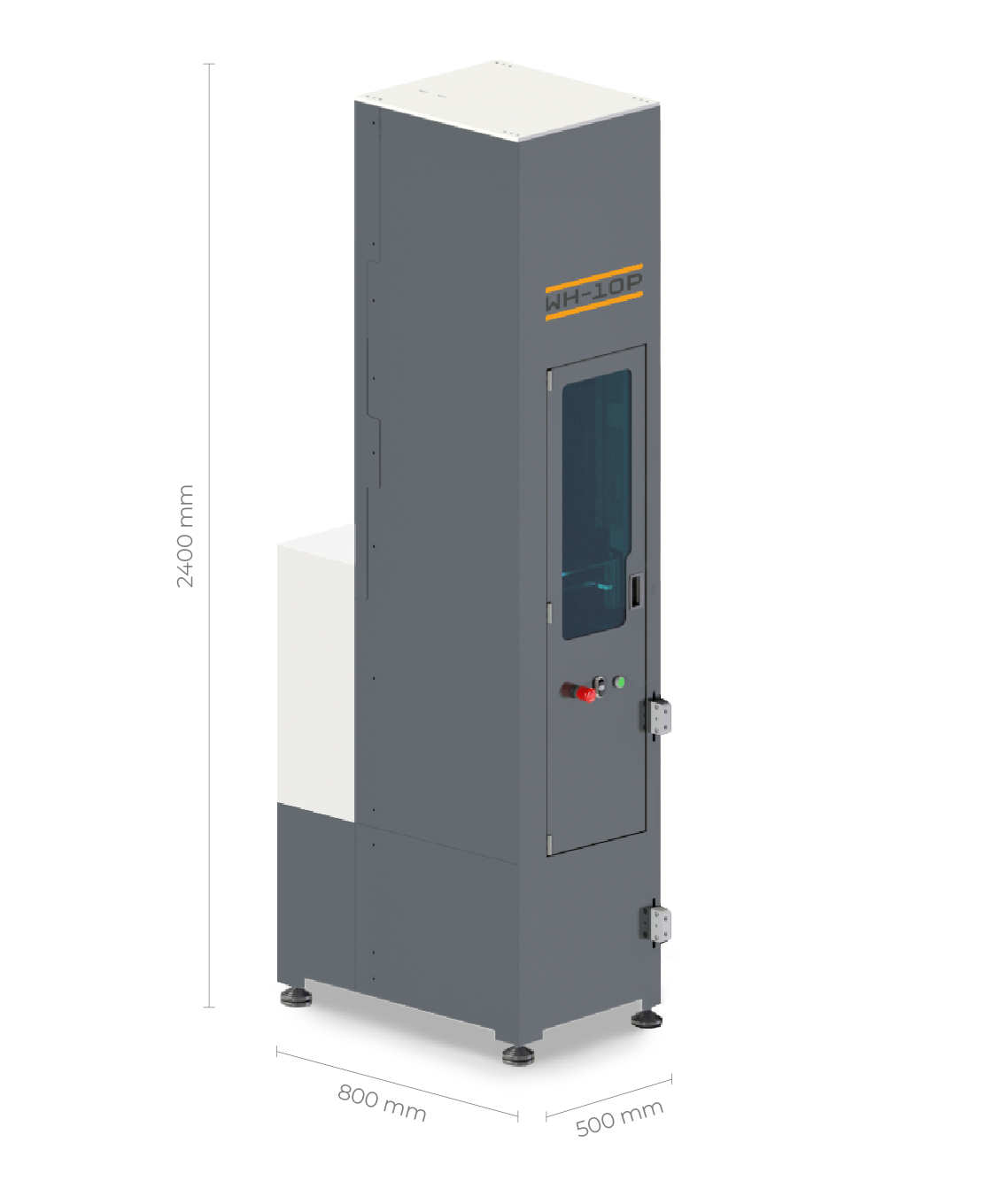

Dimensions – Dimension 502 x 800 x h 2400 mm	502 x 800 x h 2400 mm
Weight – Peso	230 Kg (empty)

Backlit pallet for automatic part recognition (customizable).

WH-10P BROCHURE

DATI TECNICI
Number of pallets	10
Maximum lift capacity	50 kg (all pallets + pieces )
Max load on single level	10 kg (one pallet + pieces)
Max piece height on tray	60 mm
Pallet dimensions	300 mm x 300 mm
Dimensions – Dimension 502 x 800 x h 2400 mm	502 x 800 x h 2400 mm
Weight – Peso	230 Kg (empty)
