BSP GALWO is a laser welding system designed for the most demanding applications, where the highest precision and aesthetic quality is required. The excellent productivity of BSP GALWO is ensured by the scanning head, which directs the laser beam with maximum speed and repeatability; the fibre laser source allows excellent results to be achieved on all metals, including precious alloys. The sturdy granite structure guarantees the stability of the system, even in the most demanding conditions.
Among the many standard features are the CVS coaxial vision system, software-based process gas management, dynamic spot and power modulation, and motorised Z-axis.

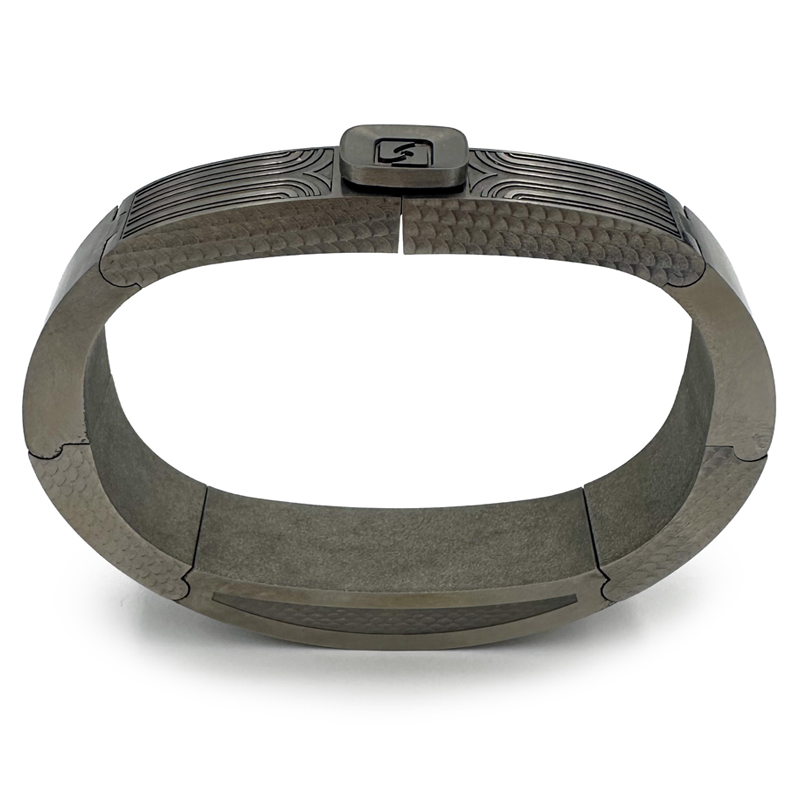

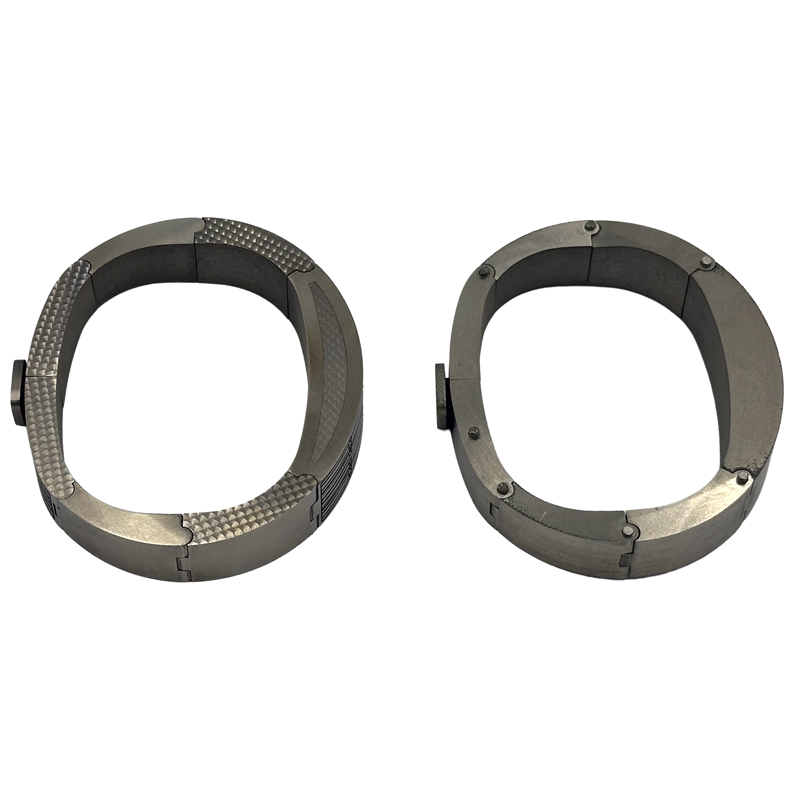

It has numerous accessories that make it a versatile system for applications in various fields (jewellery, watchmaking, fashion, micro-mechanics, medical, etc.).
This machine is suitable for:
Highest quality standards for the most demanding applications.
Perfect and repeatable centering.
Can be integrated with software expansions.
Vision system

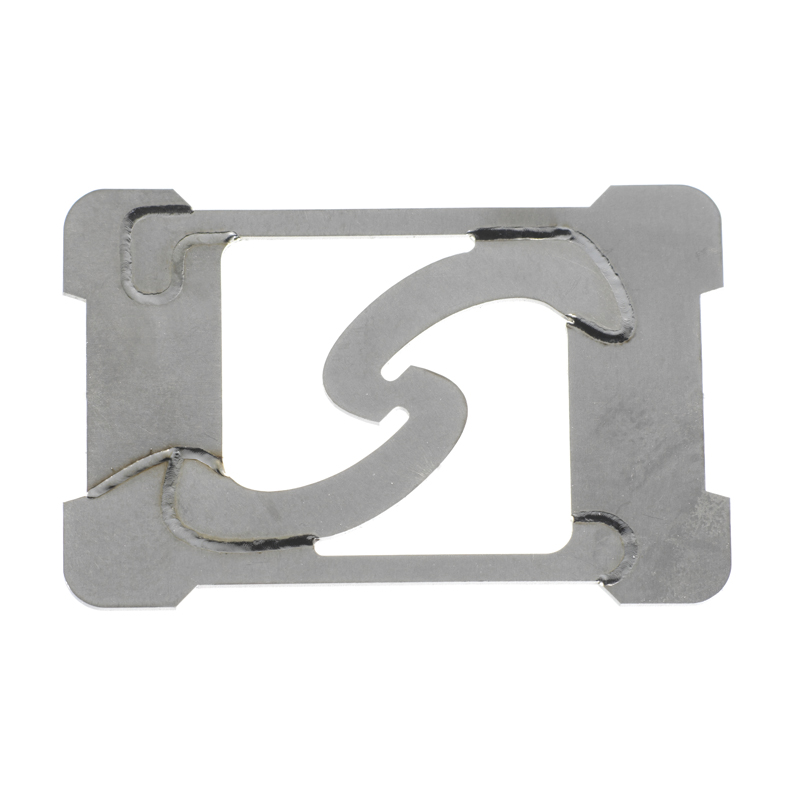

BSP GALWO allows fast and precise welding operations on a wide variety of metals, without the need for any filler material.
The laser can be used pulsed or continuous.
The innovative Wobble technology allows you to accurately control the size of the weld seam, ensuring excellent results even in the most challenging conditions. Main features:
INSIGHTS
In the Coaxial Vision System (CVS), the viewpoint of the camera coincides with the optical path of the laser beam and allows the working area to be visualised directly in the programming software, greatly facilitating the job setup. Advantages:
– high precision and repeatability of centring,
– possibility of eliminating jigs or fixtures,
– possibility of laser re-machining on the same part to obtain the required depth or finish.

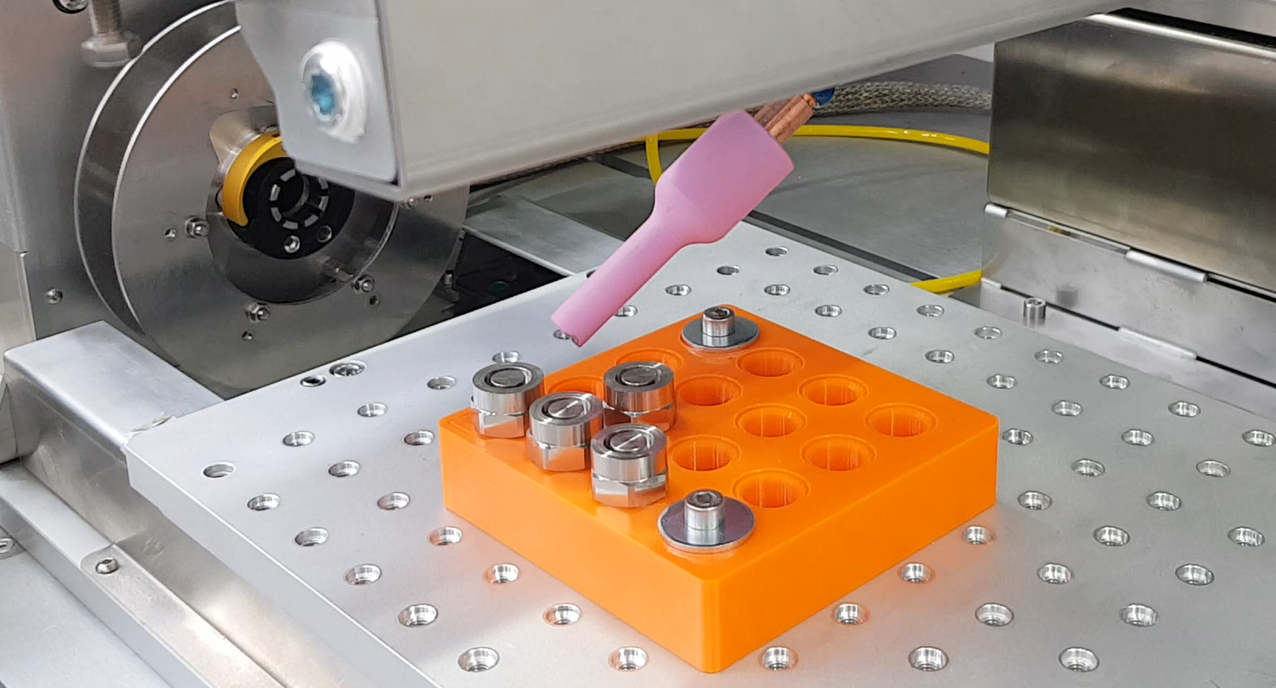

Pattern matching is an additional software functionality to CVS (optional) that allows automatic recognition of workpieces on the worktable and consequently precise and repeatable positioning and execution of machining operations
Select the application sector:
| DATI TECNICI | BSP GalWo |
| Laser surce | Yb- 150 W pulsed / 250W continuous -1070 nm |
| Working frequency | CW, 1 ÷ 2000 Khz |
| Pulse duration | 0,05 – 50 ns |
| Peak power | 1,5 kW |
| Maximum pulse energy | 15 J |
| Beam quality (M²) | 4,5 |
| Cooling system | air |
| Axes stroke (XY Z) | 300 mm x 300 mm x 300mm |
| Axes repeatability | 25 µm |
| Max piece weight | 20 kg |
| Power supply | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket |
| Power absorpiton | 1 kW |

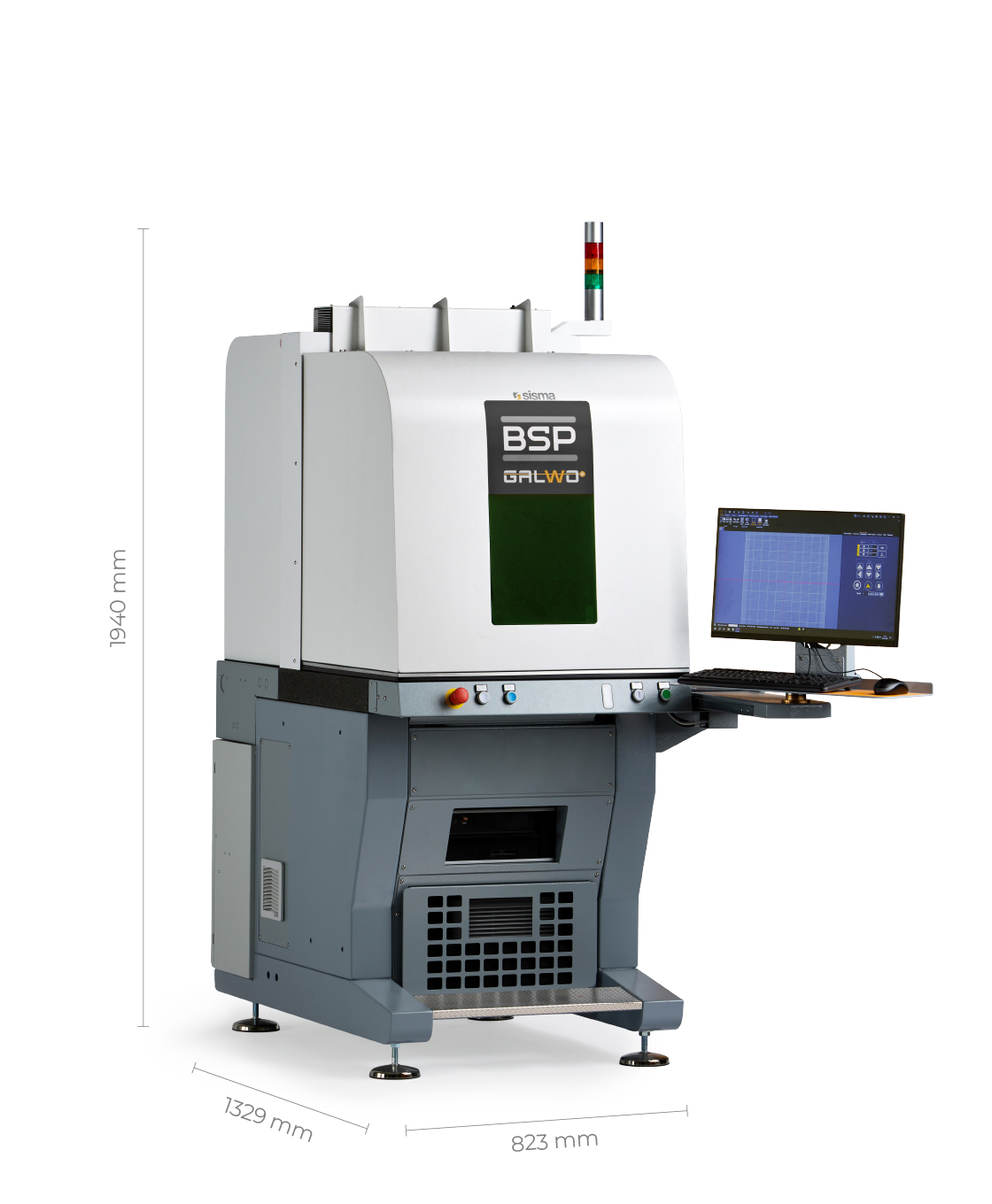

| Dimensions (L x D x H) | 823 mm x 1329 mm x 1904 mm |
| DATI TECNICI | BSP GalWo |
| Laser source | Yb- 150 W pulsed / 250W continuous -1070 nm |
| Working frequency | CW, 1 ÷ 2000 Khz |
| Pulse duration | 0,05 – 50 ns |
| Peak power | 1,5 kW |
| Maximum pulse energy | 15 J |
| Beam quality (M²) | 4,5 |
| Cooling system | air |
| Axes stroke (XY Z) | 300 mm x 300 mm x 300mm |
| Axes repeatability | 25 µm |
| Max piece weight | 20 kg |
| Power supply | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket |
| Power absorpiton | 1 kW |
| Dimensions (L x D x H) | 823 mm x 1329 mm x 1904 mm |
|
