LM represents the peak of the evolution in the manual laser welding, with every detail carefully designed, tested, and refined to deliver superior performance and ergonomics.
LM is a standalone welding system with wheeled, height-adjustable base. It features anadvanced cooling systemthat allows to operate in any work environment.
The machine feautures NanoSpot and Velvet Spot functions .
This machine is suitable for:
Also suitable for non-experts.
Small-sized machine, for small space.
Suitable for working precious materials.
Velvet Spot
Easy to use, intuitive and comfortable thanks to the new HMI interface on a 10-inch screen. Only what is essential for the operator is displayed.
We care about operator comfort with new ergonomics and new accessories.

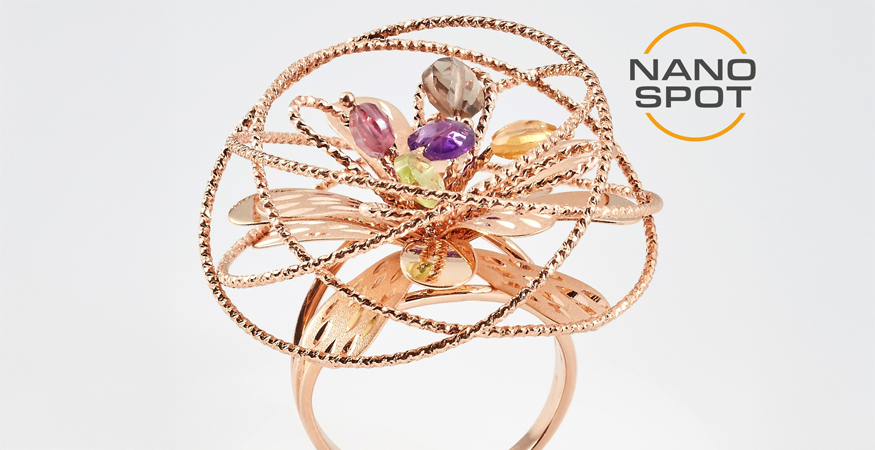

The special Nano Spot for micro-welding with a spot size of 0.05 mm and the Velvet Spot for an outstanding welding quality.
INSIGHTS
To meet the specific needs of every professional, the new LM-D Series offers a comprehensive range of optional accessories designed to
enhance efficiency, comfort, and ergonomics.
The Nano Spot (optional) allows the laser spot to be reduced to 0.05 mm. This, together with the perfect power control offered by the software, allows perfect micro-welding to be carried out on extremely thin elements.
Select the application sector:
|
LM 230 |
LM 300 |
|
|
Laser type – Tipo Laser |
Nd:YAG |
|
|
Laser class – Classe Laser |
4 |
|
|
Wavelenght – Lunghezza d’onda |
1064 nm |
|
|
LYNX |
not available – non disponibile |
|
|
Leica microscope |
standard |
|
|
T version |
not available – non disponibile |
available – disponibile |
|
FLEX |
available – disponibile |
|
|
Nano Spot |
standard |
|
|
Velvet Spot |
available – disponibile |
not available – non disponibile |
|
Pulse duration – Durata dell’impulso |
0,55 – 25 ms |
|
|
Pulse repetition rate – Frequenza di ripetizione |
0 – 50 Hz |
|
|
Maximum average power – Potenza media massima |
85 W |
110 W |
|
Maximum pulse energy – Energia massima dell’impulso (@25 ms) |
230 J |
300 J |
|
Peak power – Potenza di picco |
9 kW |
11,2 kW |
|
Focal spot diameter – Diametro dello spot |
0,05 – 2 mm |
|
|
Rated voltage – Tensione nominale |
AC 230 V 50/60 Hz |
|
|
Maximim current – Corrente massima |
12 A |
|
|
Display HMI |
10 “ |
|
|
Machine plug – Tipo spina (sull’apparecchiatura) |
CEE 7/7 (Schuko) |
|
|

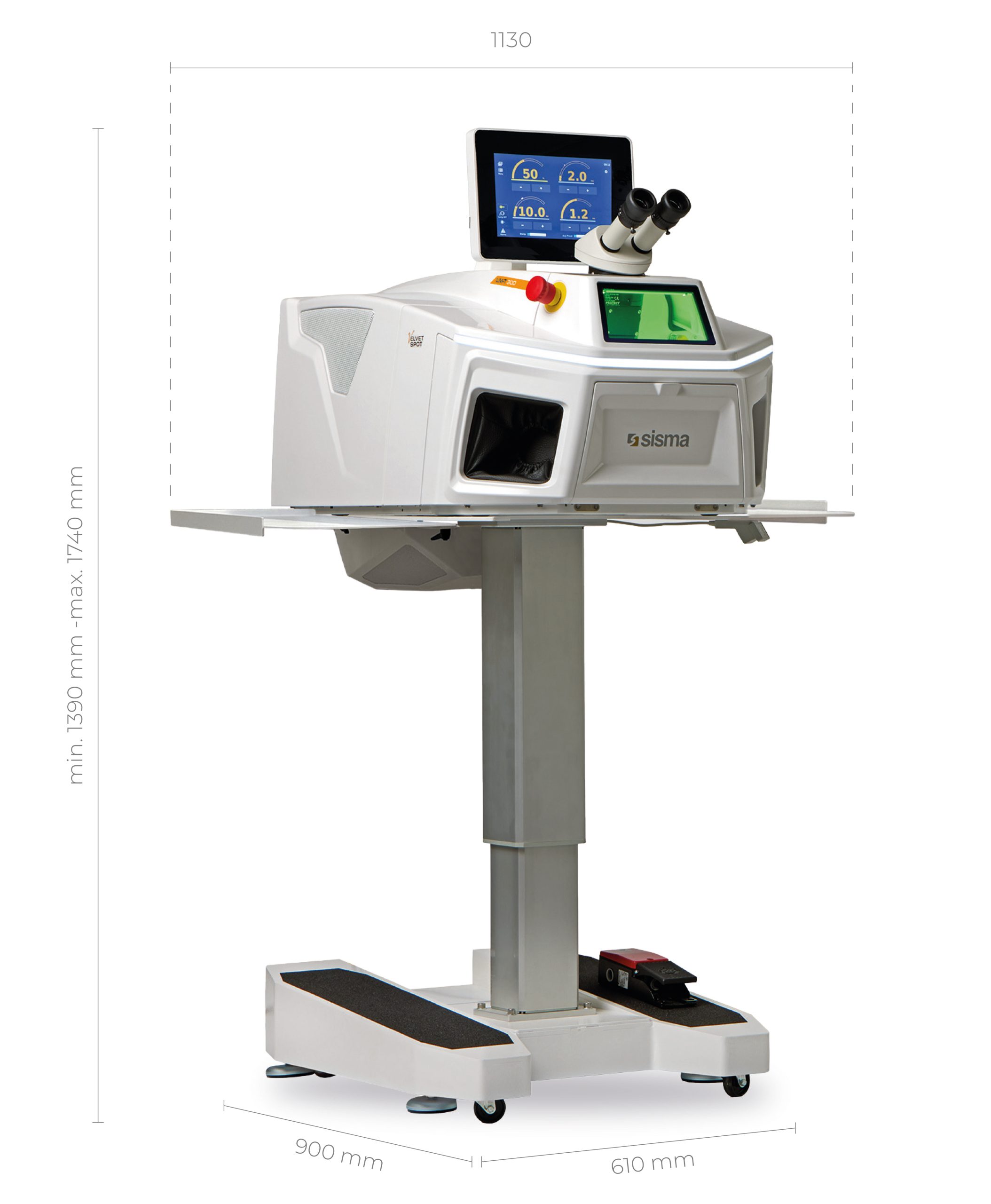

Width – Larghezza |
615 mm (without trays – senza vassoi) |
|
|
Depth – Profondità |
900 mm |
|
|
Height – Altezza |
1390 – 1740 mm |
|
|
Weight – Peso |
145 kg |
|
|
