SWS

3 OR 4 AXIS CNC WELDING STATION

SWS is a laser welding station designed for mechanical applications where high flexibility and quality are required.
It has a robust and precise motion system, based on CNC with 3 or 4 interpolated axes.
The flexibility of the fiber laser source allows to obtained high quality welds even on difficult materials. The integrated management software, developed in-house, allows for convenient and intuitive welding along complex paths. The Power Ramp functionality, included in the system, allows the optimization of welding quality by modulating the power of the laser beam in the initial and final stages of the process.

This machine is suitable for:

PRECISION AND REPEATABILITY

Highest quality standards for the most demanding applications.

STURDINESS

Robust structure ensures process stability.

4 AXES

With up to 4 interpolated axes.

SWS

INSIGHTS

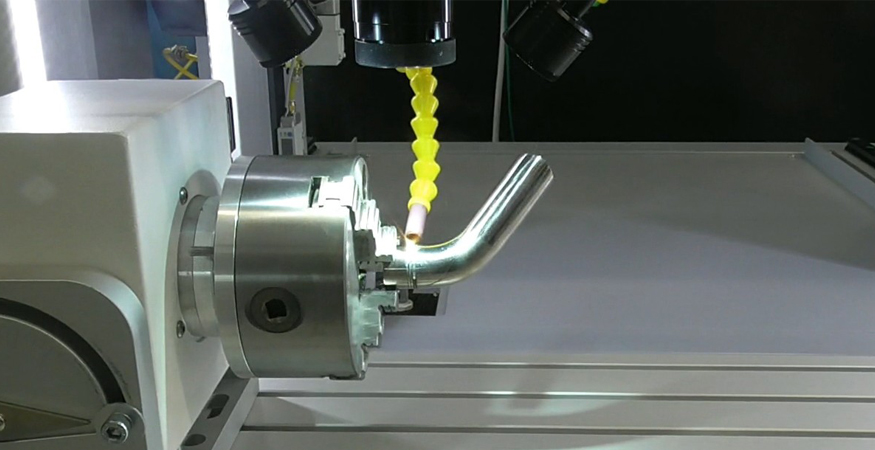

Spindle welding in SWS system

Among the various opportunities offered by the system is the welding of tubular parts with an integrated spindle.

High versatility of the SWS system

The large working chamber and the consequent axis travel allow welding of large elements or series parts.
The lowerable or removable work surface allows maximum freedom to move even very heavy pieces.

	SWS 150F	SWS 300F	SWS450F
Laser source	Fiber laser	Fiber laser	Laser Fibra
Wave lenght	1070 nm	1070 nm	1070 nm
Average power	150 W	300 W	450 W
Peak power	1,5 kW	3 kW	4 kW
Pulse energy	15 J	30 J	45 J
Pulse duration	0,2 ms – 10 ms CW	0,2 ms – 10 ms CW	0,2 ms – 10 ms CW
X axis stroke	520 mm
Y axis stroke	400 mm
Z axis stroke	400 mm
Axes prcision	+/-80µm
Axes repeatability	+/-50µm
Dimensions	1200 x 1350 x 2000h mm (excluding laser source)
Weight	450 kg (excluding laser source)
Power supply	230 V +/-10% 50/60 Hz	230 V +/-10% 50/60 Hz	230 V +/-10% 50/60 Hz
