BSP Pico is a marking and engraving system equipped with a fiber laser that generates pulses lasting only a few picoseconds. The result is a process with a very low thermal effect, ideal for making clean, precise marks that require no further finishing.
The robust structure, with a granite top, guarantees stability, process repeatability, and a load capacity of up to 20 kg with a working volume of 300 x 300 x 300 mm. Integrable system with automatic and robotic storage systems.
This machine is suitable for:
Highest quality standards for the most demanding applications.

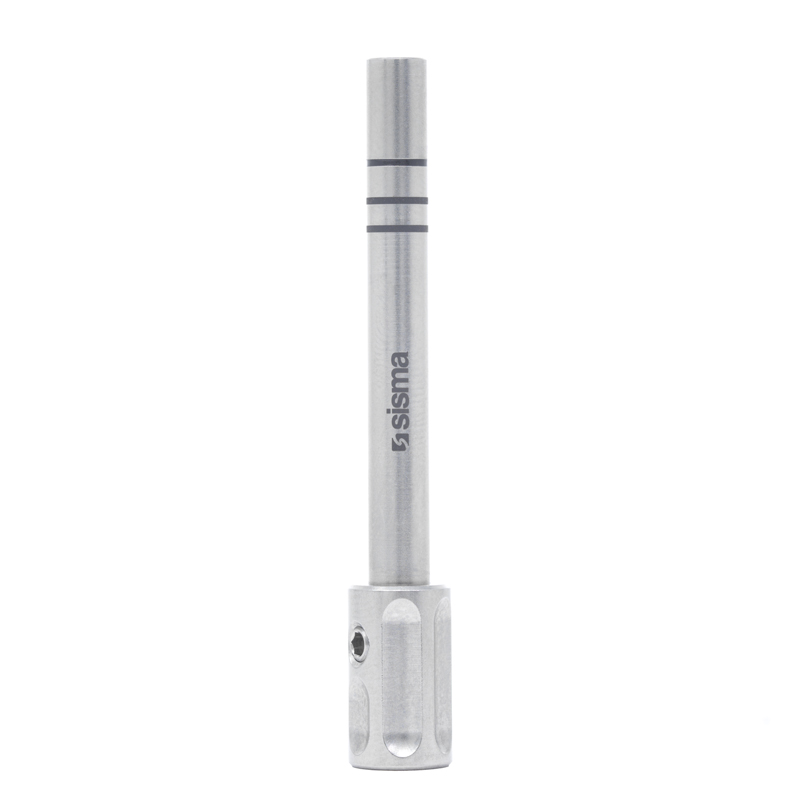

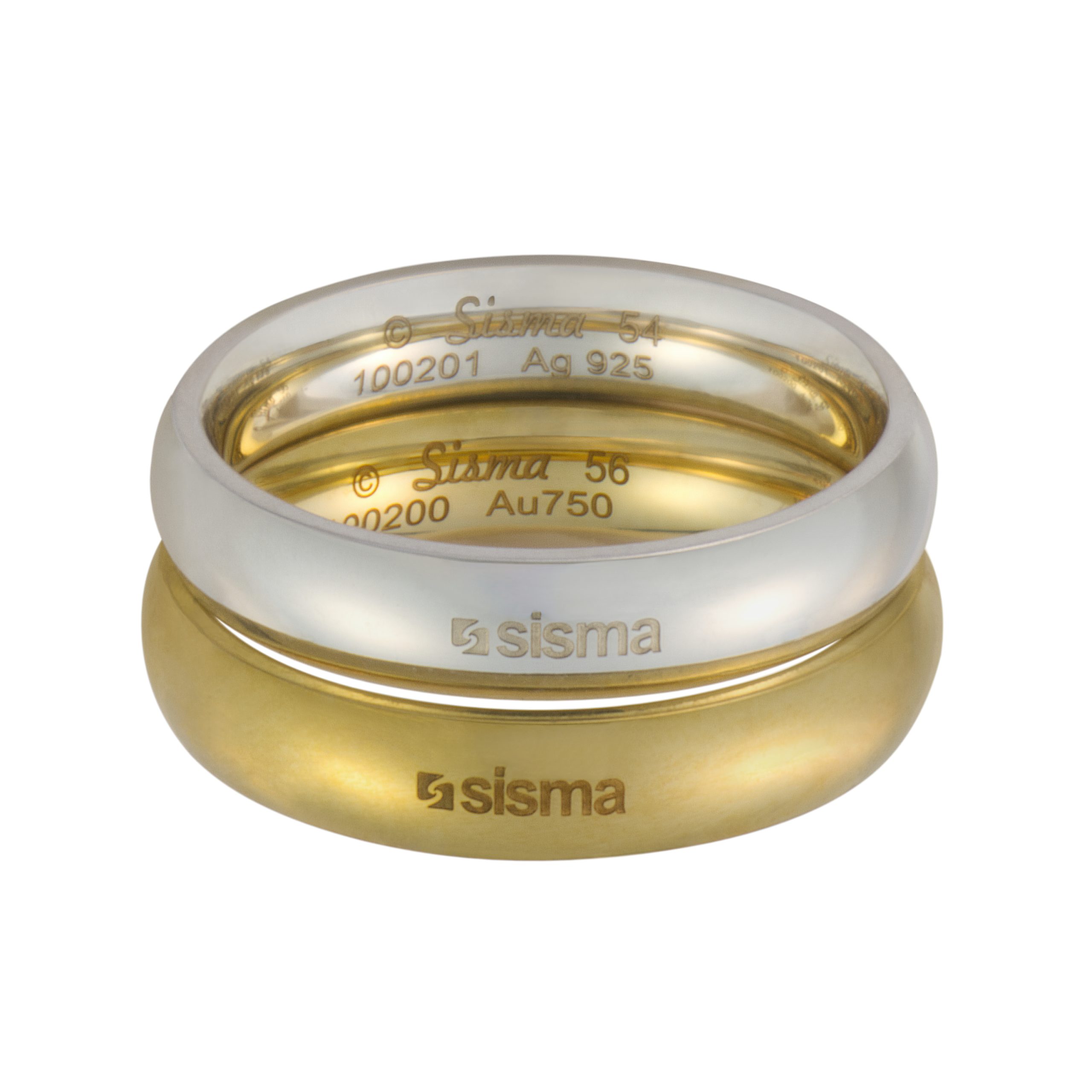

High-performing marking and engraving on steel and titanium.
Integrable with external elements.
Work chamber
The BSP PICO features three motorized axes, expandable to five, with the option of machining on a turntable or a tilting spindle. Thanks to the coaxial vision system (CVS) and SISMA SLC³ the operator can easily and intuitively harness the machine’s full potential, reducing processing times and offering extensive customization options.

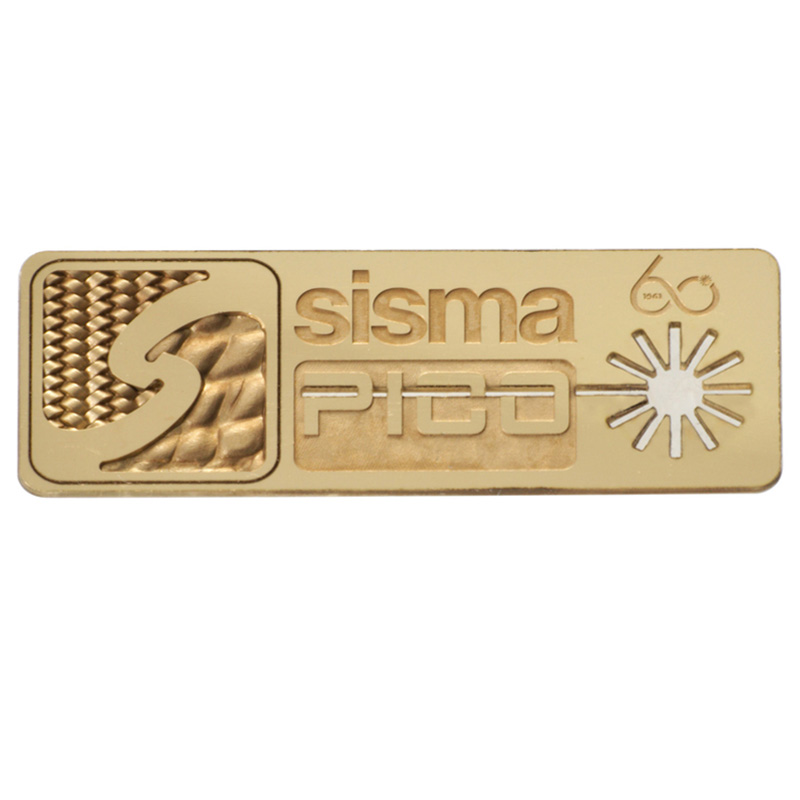

The range also includes the Burst model, ideal for high-quality decorative marking on steel and titanium, and the HT model with an external cooler, designed for intensive use or high-temperature environments.
INSIGHTS

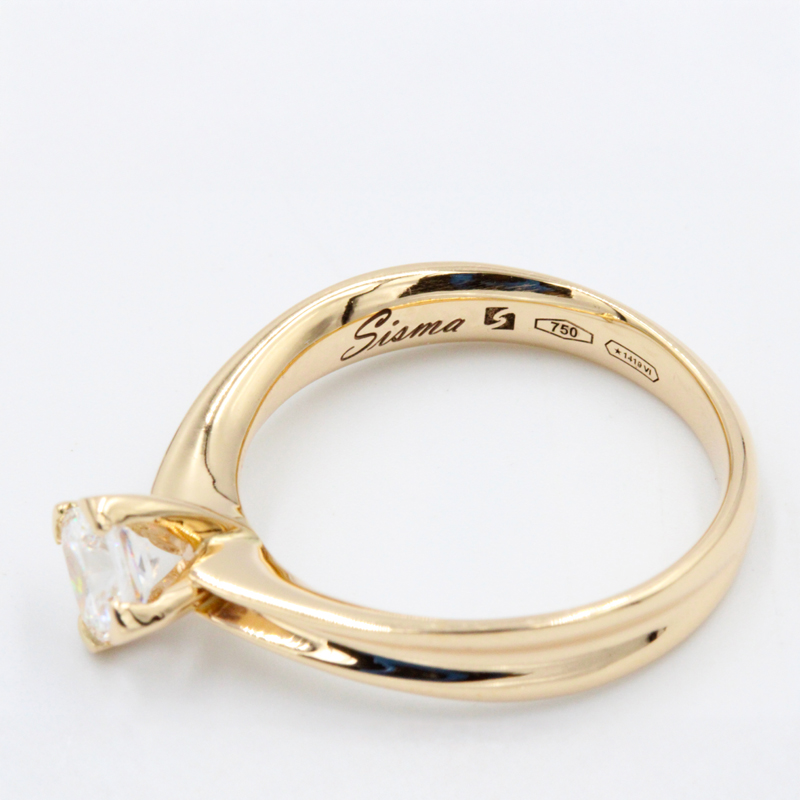

3D Scan Pack, Sisma’s patented hardware and software solution, enables the recognition, automatic reconstruction and laser processing of rings, bracelets and any other oval or circular object. The main advantage lies in the possibility of machining parts with an unknown 3D model or that do not follow the theoretical design

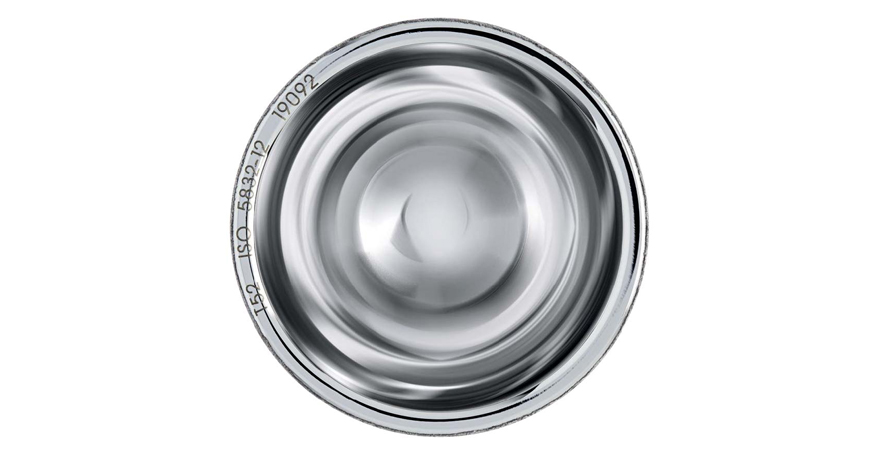

Sofab Orthopédie turned to Sisma to double its capacity for laser marking of implants and other metal medical devices.

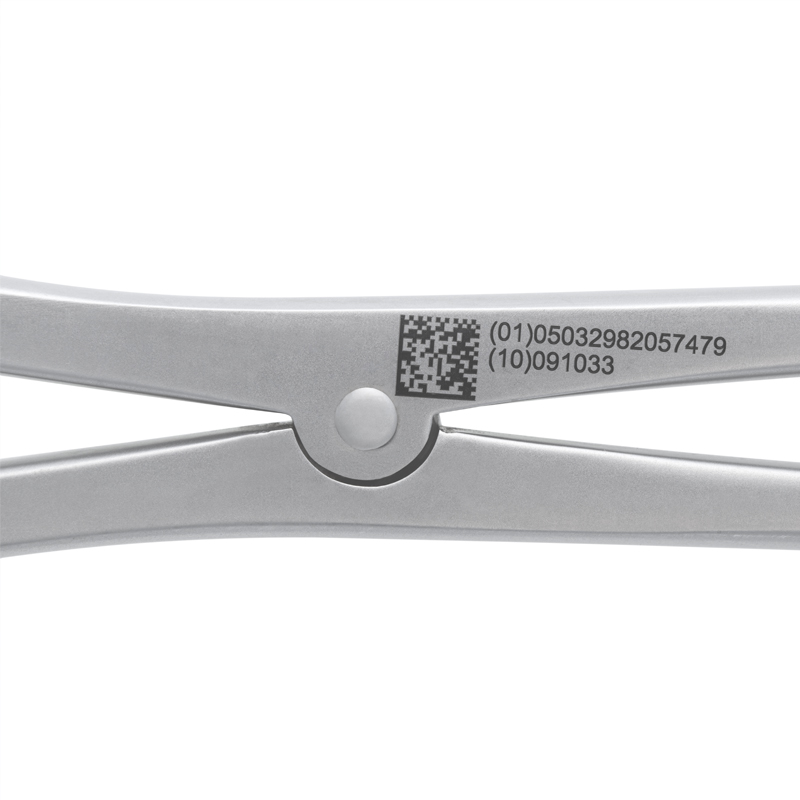

When it comes to medical projects, it is imperative to provide a robust marking process coupled with a reliable machine.
Select the application sector:
| DATI TECNICI | BSP Pico |
| Materiale attivo | Yb |
| Potenza di uscita | 50 W |
| Lunghezza d’onda | 1030 nm |
| Frequenza di lavoro | 50 ÷ 2000 kHz |
| Durata impulso | 0,001 – 0,003 ns |
| Potenza di picco | 10000 kW |
| Energia di impulso | 0,025 mJ |
| Qualità del fascio (M²) | < 1,4 |
| Raffreddamento | acqua (sul basamento) |
| Corsa assi (XYZ) | 300 mm x 300 mm x 300 mm |
| Peso max pezzo | 20 kg |
| Precisione assi | 0,05 mm |
| Ripetibilità assi | 0,02 mm |
| Alimentazione | 230 V ± 15% 50/60 Hz – single phase – CEE 16A presa |
| Potenza assorbita | 1 kW |

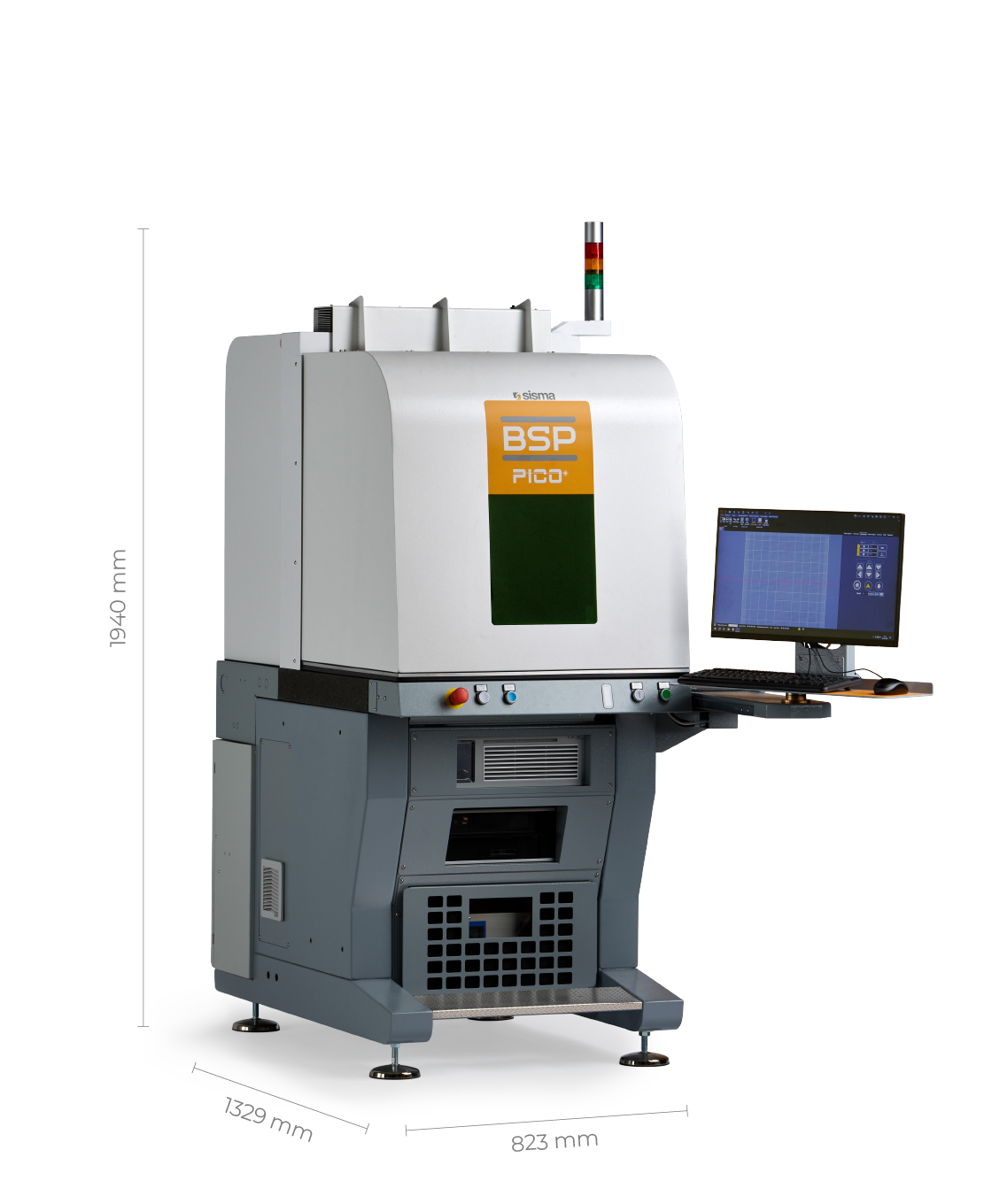

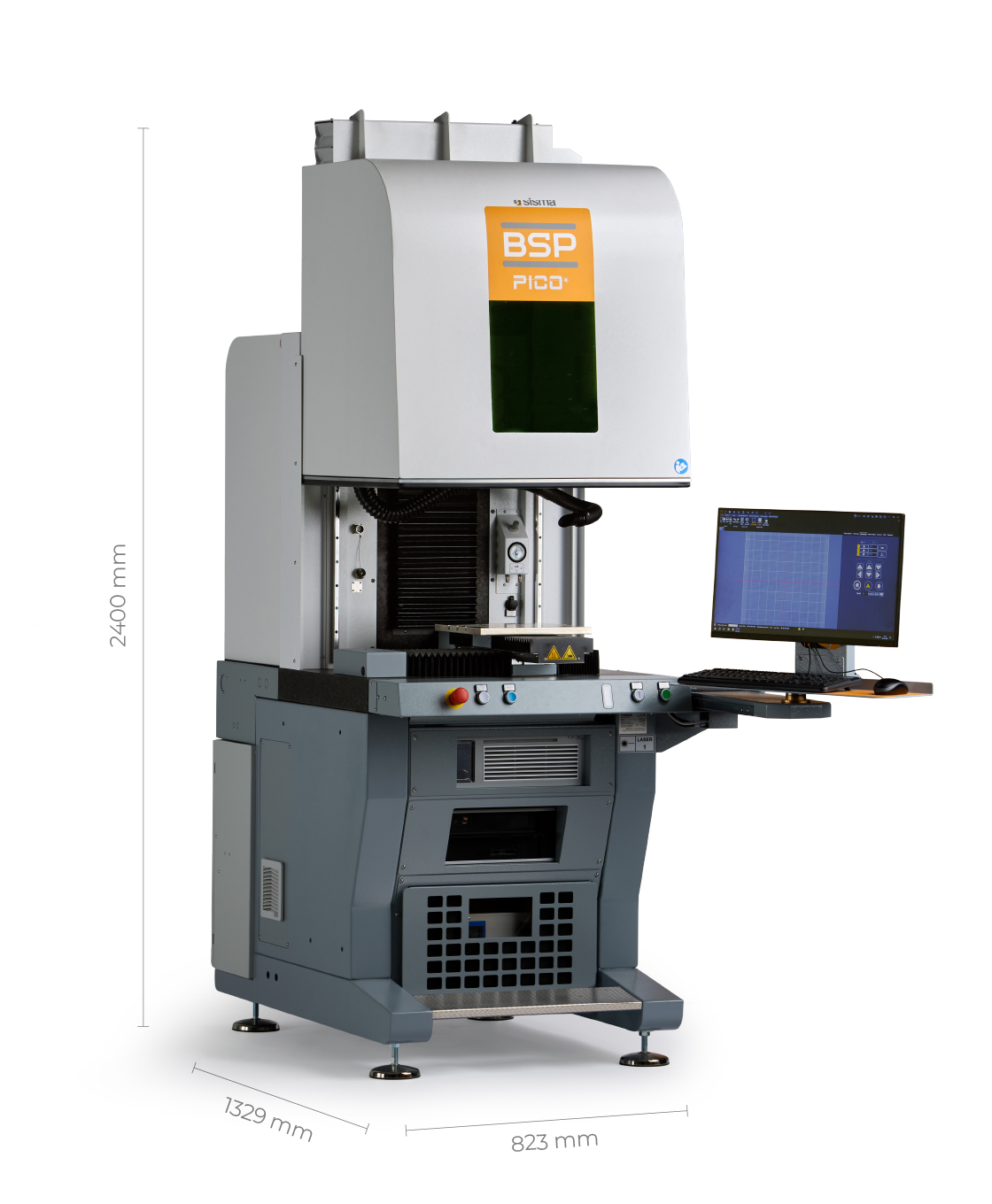

| Dimensioni (L x P x A) | 823 mm x 1329 mm x h 1904 mm (h 2400 con porta aperta) |
| Peso | 590 kg |
WH-10P Automated warehouse with 10 pallets
WH-6P Cbot robot warehouse with 6 pallets
| DATI TECNICI | BSP Pico |
| Materiale attivo | Yb |
| Potenza di uscita | 50 W |
| Lunghezza d’onda | 1030 nm |
| Frequenza di lavoro | 50 ÷ 2000 kHz |
| Durata impulso | 0,001 – 0,003 ns |
| Potenza di picco | 10000 kW |
| Energia di impulso | 0,025 mJ |
| Qualità del fascio (M²) | < 1,4 |
| Raffreddamento | acqua (sul basamento) |
| Corsa assi (XYZ) | 300 mm x 300 mm x 300 mm |
| Peso max pezzo | 20 kg |
| Precisione assi | 0,05 mm |
| Ripetibilità assi | 0,02 mm |
| Alimentazione | 230 V ± 15% 50/60 Hz – single phase – CEE 16A presa |
| Potenza assorbita | 1 kW |
| Dimensioni (L x P x A) | 823 mm x 1329 mm x h 1904 mm (h 2400 con porta aperta) |
| Peso | 590 kg |
