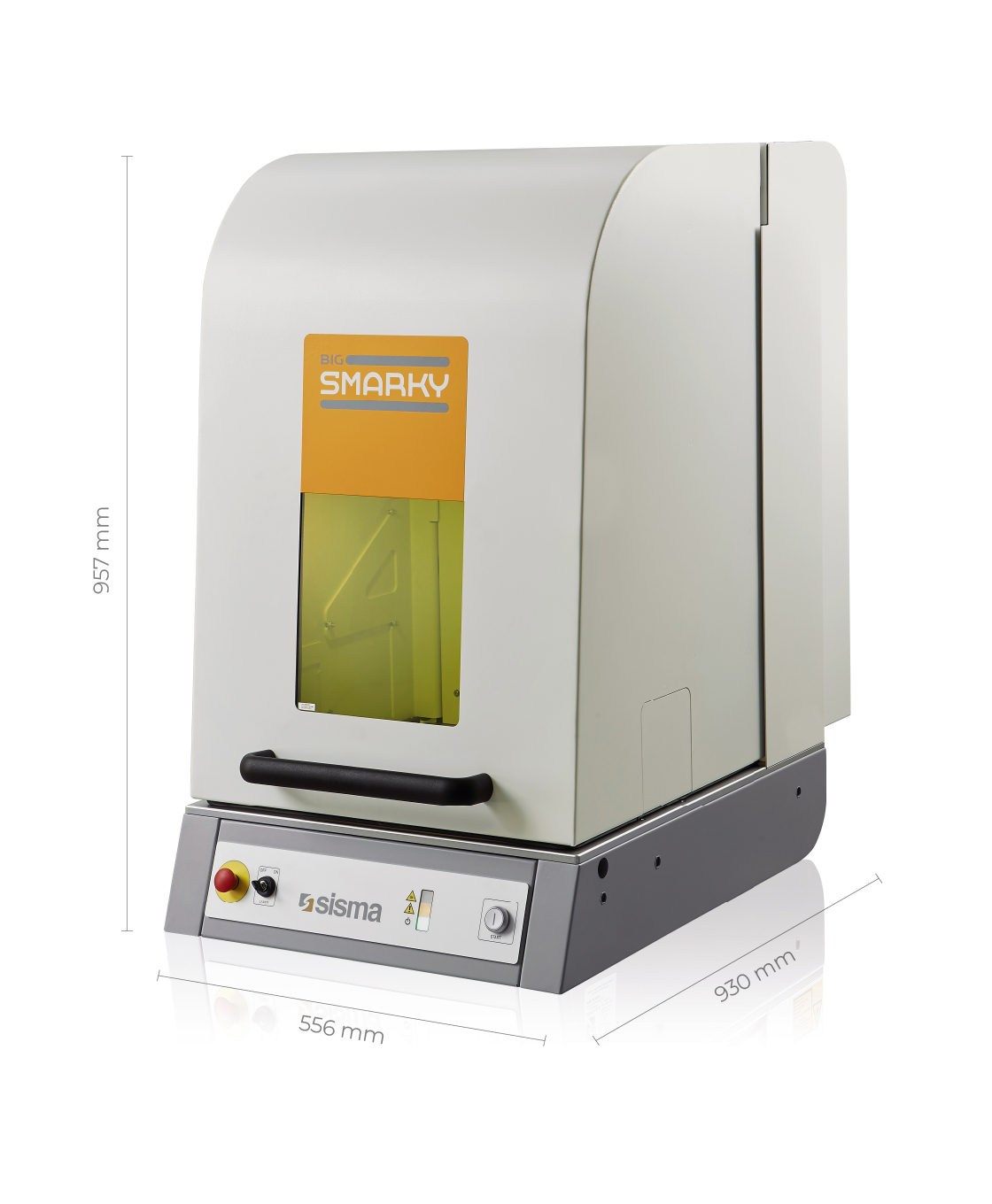

BIG SMARKY is a marking and engraving system with an ytterbium fibre laser source.
The working chamber (500 x 500 x 380 mm) is accessed through a large manual door that opens on three sides.
BIG SMARKY stands out for its versatility, as it can be placed on any workbench, or on a special base, in an assembly island or laboratory.
This machine is suitable for:
For different types of parts, processes, or workable materials.
Perfect and repeatable centering.
Entirely developed by SISMA, is intuitive and reliable.
Work chamber
The large working chamber (500 x 500 mm) and the considerable range of available machining operations on precious metals, steel, brass, aluminium and polymers, ranging from photo-etching to plate cutting, from precise and detailed engraving to the deepest and fastest excavations, make it an extremely versatile tool.
Possibility to have automatic part recognition (Pattern Matching) in combination with the Coaxial Vision System (CVS). Maximum marking area 180 x 180 mm (F254).
INSIGHTS
The configuration featuring the most powerful laser on marking machines such as the EASY, BIG SMARKY and BIG SMARK, is suitable for cutting slabs. A dedicated device is available for the motorised plate pulling, complete with a fume extractor.
Pattern Matching (PM) is an additional software functionality to CVS (optional) that allows automatic recognition of workpieces on the worktable and consequently precise and repeatable positioning and execution of machining operations (marking, engraving, cutting, etc.).
Select the application sector:
| Technical Data | BIG SMARKY 200F EP | BIG SMARKY 500F EP | BIG SMARKY 700F EP | BIG SMARKY 3000F | BIG SMARKY 70000F |
| Active material | Yb | Yb | Yb | Yb | Yb |
| Wave length | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Average power | 20 W | 50 W | 70 W | 30 W | 70 W |
| Working frequency | 1 ÷ 1000 Khz | 1 ÷ 1000 Khz | 1 ÷ 1000 Khz | 30 ÷ 80 Khz | 1 ÷ 4166 Khz |
| Impulse duration | 6 – 500 ns | 6 – 500 ns | 9 – 500 ns | 260 – 40 ns | 260 – 40 ns |
| Pulse energy | 0,03 – 1 mJ | 0,03 – 1 mJ | 0,03 – 1 mJ | 1-021 mJ | 1-021 mJ |
| Beam quality | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 |
| Z axes stroke | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm |
| Working chamber | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm |
| Working temperature | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C |
| Power supply | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket |
| Power absorption | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW |
| Dimensions (L x D x H) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) |
| Weight | 125 kg | 125 kg | 125 kg | 125 kg | 125 kg |
CVS Coaxial Vision System
Machine stand.
Automatic door.
Pattern Matching (PM)is a software modul that automatically recognizes one or more shapes, even simultaneously, and allows for consequent alignment and execution of the laser process (marking, engraving, cut,
etc.).
Software FILL-IT for the generation of filling graphics for aesthetic effects. Able to reproduce effects such as perlage, sunburst, côte de genève, brushed, sandblasted and with the possibility of personalized effects.

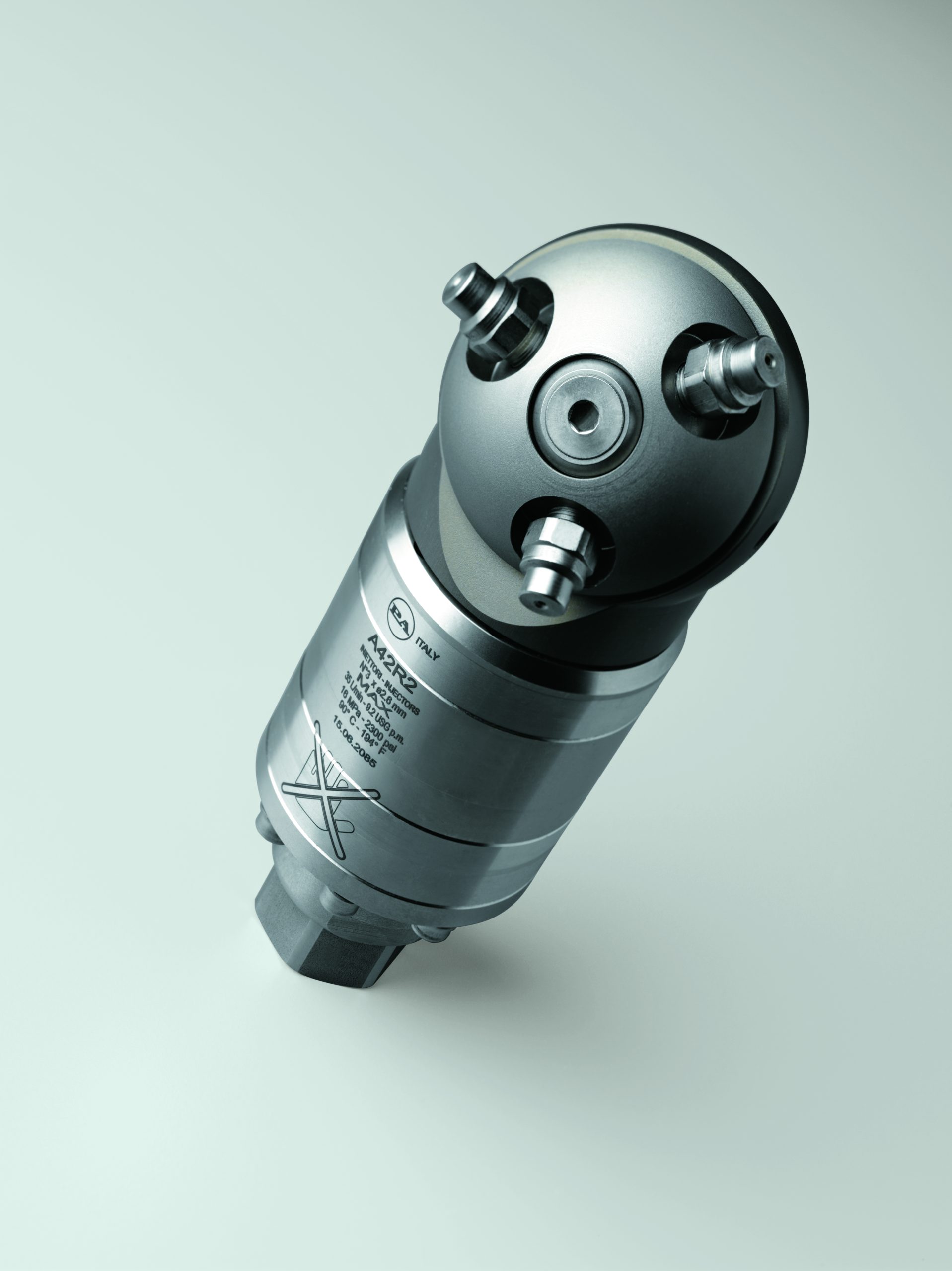

Motorised spindles with numerous options of grippers.
Static vices for plates or with motorised plate pulling motorised, also with Vacuum Box for fume extraction.
Foot control.
| Technical Data | BIG SMARKY 200F EP | BIG SMARKY 500F EP | BIG SMARKY 700F EP | BIG SMARKY 3000F | BIG SMARKY 70000F |
| Active material | Yb | Yb | Yb | Yb | Yb |
| Wave length | 1064 nm | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Average power | 20 W | 50 W | 70 W | 30 W | 70 W |
| Working frequency | 1 ÷ 1000 Khz | 1 ÷ 1000 Khz | 1 ÷ 1000 Khz | 30 ÷ 80 Khz | 1 ÷ 4166 Khz |
| Impulse duration | 6 – 500 ns | 6 – 500 ns | 9 – 500 ns | 260 – 40 ns | 260 – 40 ns |
| Pulse energy | 0,03 – 1 mJ | 0,03 – 1 mJ | 0,03 – 1 mJ | 1-021 mJ | 1-021 mJ |
| Beam quality | < 1,6 | < 1,6 | < 1,6 | < 1,6 | < 1,6 |
| Z axes stroke | 380 mm | 380 mm | 380 mm | 380 mm | 380 mm |
| Working chamber | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm | 500 x 500 x 380 mm |
| Working temperature | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C | 10°C to 35°C |
| Power supply | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket | 230 V ± 15% 50/60 Hz – 1ph – CEE 16A socket |
| Power absorption | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW | 0,8 kW |
| Dimensions (L x D x H) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) | 556 x 930 x h957 mm (h 1328 open door) |
| Weight | 125 kg | 125 kg | 125 kg | 125 kg | 125 kg |
CVS Coaxial Vision System
Machine stand.
Automatic door.
Pattern Matching (PM)is a software modul that automatically recognizes one or more shapes, even simultaneously, and allows for consequent alignment and execution of the laser process (marking, engraving, cut,
etc.).
Software FILL-IT for the generation of filling graphics for aesthetic effects. Able to reproduce effects such as perlage, sunburst, côte de genève, brushed, sandblasted and with the possibility of personalized effects.
Motorised spindles with numerous options of grippers.
Foot control.
